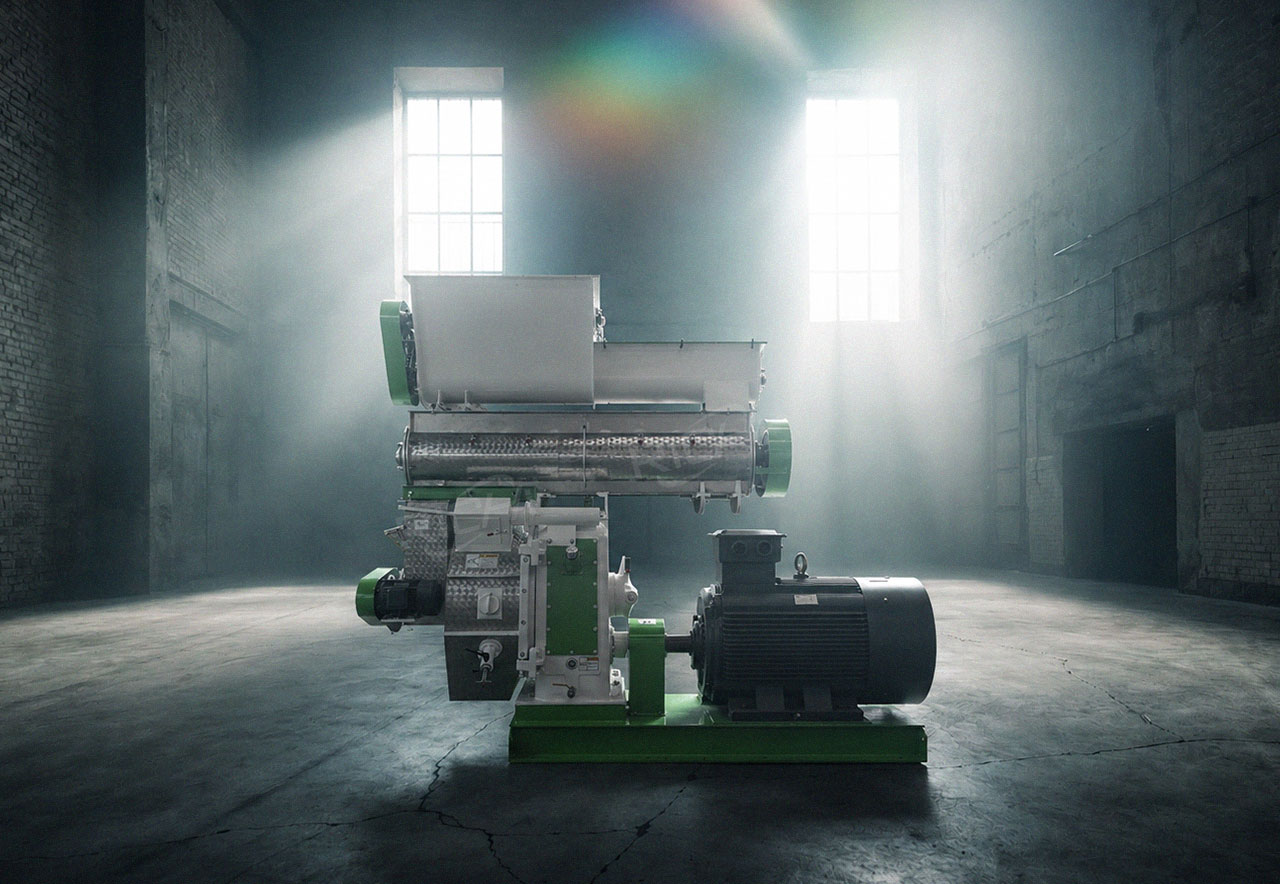

Animal Bedding Pellet Mill
Are you still troubled by the fact that traditional animal bedding is prone to dampness and mold and is difficult to clean?Or are you anxious about not being able to find a suitable pellet mill? Richi’s animal bedding pellet mill easily solves these problems for you.Don’t hesitate, take action and come and buy one!
Customer output : 15t/h
Equipment Introduction
Our animal bedding pellet mill can process biomass raw materials such as wood shavings，sawdust, and straw into 4-12mm pellets. These pellets are highly absorbent, produce little dust, and are environmentally friendly and odorless, making them widely applicable in stables, pet farms, and ranches. The equipment has passed CE and ISO certifications, operates stably, is reliable, and sells globally, making it the preferred choice for many users.
Structure of Animal Bedding Pellet Mill
The feeding system, conditioning system, granulation system and transmission system of this equipment work together to ensure the production requirements of continuous granulation.
Feeding System
Using a variable frequency feeder and a forced feeder ensures that raw materials such as sawdust and wood shavings enter the pellet mill evenly and smoothly, effectively preventing material agglomeration and blockage, thereby significantly improving production efficiency. Meanwhile, the equipped anti-arching device allows for flexible adjustment of the feeding speed. Operation is simple and convenient, reducing manual intervention.
Modulation System
The conditioner is made of 304 stainless steel and uses axial steam injection to thoroughly mature and sterilize the materials. The high-temperature steam softens the wood fibers and activates the adhesive properties of natural lignin, significantly improving the compactness of the bedding particles. Furthermore, the system’s multi-layer conditioner extends the residence time of the materials within the conditioner, resulting in more hygienic, odorless, and higher-quality bedding.
Pelletizing System
The core components are made of highly wear-resistant and high-quality materials. The ring die and pressure roller work together efficiently to form uniform granules of 4-12mm from the pre-treated material under high-pressure compression technology. The ring die features a convenient replacement design, which can flexibly adjust the granule size to adapt to different animal farming scenarios. It has high granulation efficiency, low energy consumption, uniform granule formation, and strong water absorption.
Drive System
Employing a direct-drive gear structure, this system offers higher transmission efficiency compared to traditional belt drives. A Siemens motor directly drives the main shaft via the gearbox, ensuring stable torque output suitable for long-term heavy-duty operation. The core bearings are from the imported SKF brand, and the gears undergo carburizing and quenching treatment for improved wear resistance and impact resistance. The machine operates smoothly with low noise, significantly reducing maintenance frequency and operating costs.
Parameter Table of Animal Bedding Pellet Mill
Our pellet machine is available in various models; you may select the one that best suits your specific production output and requirements. The detailed specifications are as follows:
Animal bedding pellet production
| Model | MSZLH250 | MSZLH320 | MSZLH350 | MSZLH420 | MSZLH508 | MSZLH558 | MSZLH678 | MSZLH768 |
| Output (T/H) | 1.0-1.5 | 3.0-4.0 | 5.0-6.0 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
| Main Motor Power (KW) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Power(KW) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Power (KW) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Finished Pellet Diameter (mm) | 2-12 | |||||||
| Ring Die Diameter (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH678 | MZLH768 |
| Output (T/H) | 0.2-0.3 | 0.3-0.5 | 1.0-1.2 | 1.5-2.0 | 2.5-3.0 | 3.0-4.0 |
| Main Motor Power (KW) | 22 | 37 | 90 | 132 | 200 | 250 |
| Breaker Feeder Power (KW) | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power(KW) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Finished Pellet Diameter (mm) | 4-12 | |||||
| Ring Die Inner Diameter(mm) | 320 | 350 | 420 | 520 | 673 | 762 |
Advantages of Animal Bedding Pellet Mill
We strive for excellence and put your needs first, committed to creating a high-quality pellet mill that will satisfy you.
number one
Strong Raw Material Adaptability
This equipment can process a wide range of biomass raw materials, from rice husks, sawdust, to bentonite, pulp, and fiber, all of which are perfectly compatible. You can flexibly granulate according to your own formula and needs. Furthermore, during the pelleting process, you do not need to use any additional additives. The natural lignin contained in the raw materials is sufficient to achieve a good binding effect under the high temperature and pressure of the pellet mill.
number two
Robust And Durable Equipment
The machine body is made of corrosion-resistant materials, resulting in a longer service life. Parts in contact with materials are made of 304 stainless steel, which improves the machine’s performance, reduces material contamination, and is more suitable for long-term granulation. Core components such as the ring die are made of 40CrMo and have undergone carburizing heat treatment, providing better wear resistance. This makes the equipment operate more stably and can meet the requirements for long-term continuous operation.
number three
Superior Finished Product Quality
The pellets produced by our pellet mill are high in density and highly absorbent, effectively absorbing urine and reducing odor. At the same time, the pellets have low dust content, avoiding irritation to the animal’s respiratory tract. The pellet diameter is 4-12mm, suitable for various animals such as hamsters, rabbits, and horses; you can adjust the pellet length to suit your needs.
Applications of Animal Bedding Pellet Mill
Our animal bedding pellet mills have a wide range of applications and can meet the production needs of livestock farms, pet bedding processing plants, sawdust plants, and more.
Livestock Farm
For livestock farms, purchasing livestock bedding regularly can be a significant expense. If you wish to save on this cost, please choose our animal bedding pellet mill, which can process raw materials such as straw and rice husks into high-density bedding pellets. The finished product is highly absorbent, has excellent deodorizing properties, and effectively improves the living environment for livestock.
Pet Bedding Processing Plant
Our animal bedding pellet mill offers flexible output and strong adaptability to raw materials, making it especially suitable for users like you who produce bedding on a large scale. The equipment is highly automated, easy to operate, and requires only 2-3 people to complete production. Furthermore, the finished pellets are uniform in length and of high quality, earning you a good reputation.
Sawdust Factory
If you’ve long struggled with sawdust processing and earned meager profits, our bedding pellet mill is the perfect solution. You can use this pellet mill to process wood chips and shavings into high-value animal bedding, solving not only the problems of sawdust taking up space and unsold inventory, but also significantly increasing your income.
Complete animal bedding Production Processing
The complete animal bedding pellet processing workflow includes raw material cleaning, crushing, drying,mixing, pelletizing, cooling,screening and packaging.
Raw Material Cleaning Section
A rotary drum pre-cleaner is used to remove impurities carried in raw materials such as rice husks, wood shavings, and sawdust, preventing them from wearing out the equipment.
Crushing & Drying Section
The cleaned raw materials are then fed into a hammer mill for crushing.The material is dried in a rotary dryer in preparation for subsequent granulation.
Pelletizing Section
The dried material, meeting the moisture requirements for granulation, enters the pelletizing chamber, where the pellet mill forms it into uniformly sized pellets.
Cooling Section
The counterflow cooler cools the pad material particles to room temperature.
Screening Section
Finished bedding pellets inevitably contain powder and fragments, requiring screening equipment such as vibrating screens to separate them.
Packaging Section
The qualified bedding pellets are weighed and packaged using a packing machine.
Project Cases
We possess extensive experience in overseas animal bedding production projects and are able to provide you with specialized, customized equipment and engineering services.
●US
Medium-Sized Wood Chip Bedding Pelletizing Project
Background: The client is a medium-sized timber processing plant in the southern United States with a stable supply of kiln-dried pine sawdust. Previously, the sawdust was mostly sold cheaply in bulk or even given away. They later discovered that local horse farms and poultry farms urgently needed pellet bedding, and ultimately decided to purchase our pelletizing machine.
- Model: MZLH520
- Capacity: 1.5-2.0t/h
- Main Motor Power: 132kW
- Pellet Diameter: 6-8mm
●Poland
Chicken Farm Bedding Pelletizing Project
Background: The client possessed abundant wheat straw and rye straw, but directly spreading them resulted in large storage space requirements and increased susceptibility to dampness and mold, leading to low selling prices. After trial use confirmed that pellets effectively controlled ammonia levels, it was decided to process the complex straw fibers into bedding.
- Model: MZLH678
- Capacity: 5.0t/h
- Main Motor Power: 185kW
- Pellet Diameter: 6mm
●New Zealand
Farm Straw Bedding Pelletizing Project
Background: The client is from New Zealand and mainly raises dairy cows and sheep. They possess wheat straw and forage resources, but their utilization rate is low. To replace purchased bedding and reduce long-term operating costs, they decided to install our pellet equipment after trial use to meet their needs.
- Model: MZLH520
- Capacity: 1.5-2.0t/h
- Main Motor Power: 132kW
- Pellet Diameter: 8mm
●Thailand
Livestock Farm Rice Husk Bedding Project
Background: A small rice mill in central Thailand had accumulated a large amount of rice husks, while nearby poultry farms urgently needed bedding. To turn waste into treasure and achieve self-sufficiency, the client chose our pellet mill. This solution requires minimal investment and occupies a small area, perfectly meeting the client’s gradual upgrade needs.
- Model: MZLH350
- Capacity: 0.3-0.5t/h
- Main Motor Power: 37kW
- Pellet Diameter: 6mm
Customized Solutions
We provide customized animal bedding production solutions tailored to specific animal types, raw materials, and production capacity requirements, helping you achieve efficient, low-cost, and large-scale production.
Lightweight Wood Shavings Blockage
Lightweight raw materials-such as wood shavings and sawdust-are prone to causing blockages and interruptions in the feed flow. By incorporating forced feeding and variable frequency control technologies, alongside an optimized feeding structure, it is possible to significantly reduce blockage rates and enhance continuous production capabilities.
High Moisture Content Raw Material Pelletizing Issues
Raw materials such as wood chips and crop stalks often possess high moisture content; attempting to pelletize them directly frequently results in loose or cracked pellets. Integrating a rotary dryer into the system improves pellet density and product stability, thereby minimizing raw material waste.
Excessive Dust in Animal Bedding
Traditional animal bedding is typically loose and generates excessive dust, which adversely affects animal respiratory health and incurs high costs for cleanup and transportation. By optimizing the pelletizing process and compression density-and by utilizing a vibrating screen to remove fine particles-it is possible to produce bedding pellets characterized by low dust levels and high absorbency.
Low Efficiency of Manual Packaging
Manual weighing and packaging methods are inefficient and prone to significant errors, making it difficult to meet the demands of large-scale production. By integrating an automated weighing and packaging system-which enables precise quantitative packaging and automatic sealing-manufacturers can drastically reduce labor costs and substantially boost packaging efficiency.
About RICHI Machinery
Based in China and serving global markets, RICHI Machinery is a global manufacturer and engineering service provider specializing in pellet production equipment and complete processing systems. From feed, biomass, and organic fertilizer to cat litter and agricultural waste recycling, we help customers build efficient, reliable, and scalable production solutions tailored to their raw materials, capacity requirements, and market goals. With projects delivered across multiple industries and countries, our focus is always on practical performance, long-term operation, and customer success.
Advanced Engineering & Intelligent Manufacturing
Driven by technology and manufacturing expertise, RICHI integrates process engineering, equipment R&D, intelligent manufacturing, and project delivery into one complete service system. Our modern production facilities, precision machining capabilities, and experienced technical team allow us to provide customized equipment, complete plant design, automation integration, installation guidance, and ongoing technical support. From single machines to fully integrated production lines, we deliver solutions designed for stability, efficiency, and sustainable production growth.
Frequently Asked Questions
What raw materials can this pellet mill process?
Our equipment is suitable for processing a variety of biomass raw materials, such as wood shavings, sawdust and rice husks. It can stably pelletize materials according to their characteristics, and is widely used in the production of cat litter, horse litter, and poultry bedding.
What are the benefits of animal bedding pellets for livestock?
Animal bedding pellets provide livestock with a highly absorbent, low-dust environment, helping to reduce odors and keep living areas clean. The pellets effectively absorb moisture, keeping animals dry and comfortable, thus reducing health problems caused by damp bedding. Furthermore, bedding pellets are easy to handle and can be composted after use, making them an environmentally friendly choice for farms.
What sizes of bedding pellets can be produced?
The bedding pellet mill can produce pellets of various sizes, typically from 4 mm to 12 mm in diameter, depending on the animal’s needs. Smaller pellets are generally used for small animals or pets, while larger pellets are suitable for livestock bedding, providing greater absorbency and comfort. You can adjust the pellet size by changing the die in the pellet mill, thus flexibly meeting specific padding requirements.
Does your company provide installation, training, and after-sales service?
Sure, we not only provide high-quality equipment but also offer one-stop service, including equipment selection, solution design, installation and commissioning, operation training, and after-sales technical support. We can also provide remote video guidance or on-site engineer service to help you quickly start production.
What is the output of your pellet mill?
We can provide various models of equipment to meet your diverse production needs. Small-scale equipment is suitable for start-ups or small-scale processing, with an output of 300-800kg/h; medium and large-scale equipment can reach 1-5t/h, suitable for large-scale production.
Can the pellet size produced by the animal bedding pellet mill be adjusted?
Of course. Our equipment supports changing molds with different apertures, allowing you to produce pellets of different diameters and lengths according to your needs. Common sizes include 6mm, 8mm, and 10mm, suitable for different types of pet bedding and livestock bedding needs. The length of the cutter in the equipment can also be flexibly adjusted to ensure that the particles have a uniform and aesthetically pleasing appearance.
