Chicken Manure Pellet Mills
The RICHI Chicken Manure Granulator is capable of producing both powdered fertilizer (1–20 mm) and granular fertilizer (2–12 mm), with the complete production line integrating every process—from bale crushing to automated packaging.
Production capacity : 1-26t/h

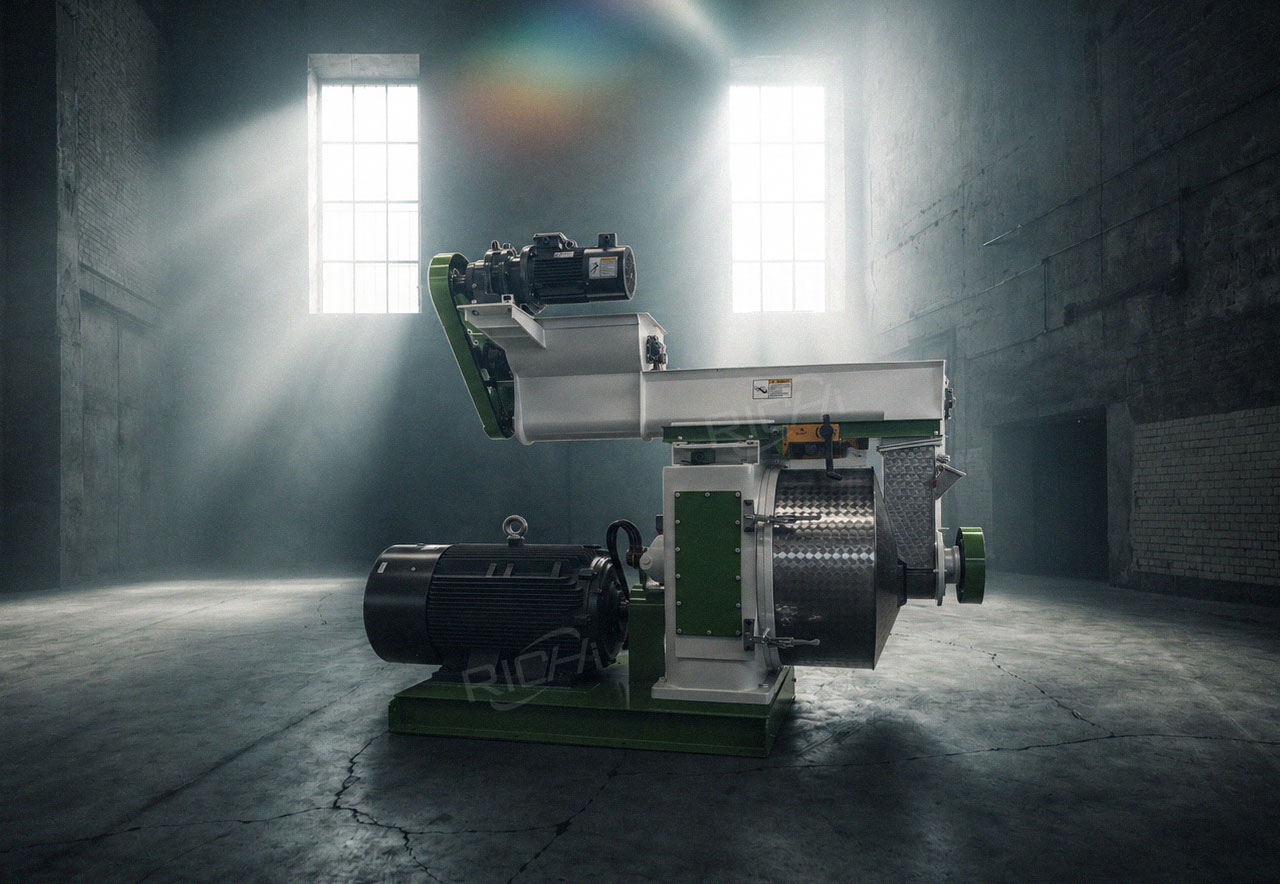

RICHI Chicken
Manure Pellet Mill
Since its establishment in 1995, RICHI has focused on feed machinery for 31 years, committed to achieving maximum long-term value with the lowest operating costs.
Product Introduction
Addressing the high nitrogen and high moisture characteristics of chicken manure, the chicken manure granulator employs a low-temperature, high-airflow drying process capable of effectively preserving the organic matter and beneficial live bacteria contained within. The granulation molding rate reaches as high as 98%, producing uniform and compact granules.
Suitable for large-scale poultry farms, organic fertilizer processing plants, and agricultural waste resource utilization projects.
Avoid clogging
It employs a vertical chain crusher featuring a screenless design, effectively resolving the issue of wet chicken manure clogging. A pneumatic tapping mechanism mounts on top of the rotary screen. It strikes the screen surface automatically to effectively dislodge wet fibers that stick to it.
The screen allows fine powder to flow smoothly into the next processing stage, and conveys oversized retained particles back to the pulverizer through a return screw, forming a closed-loop circulation system.
Superior Pellet Quality
The granulation stage employs a specialized granulator featuring a precisely matched ring die and pressure roller assembly. The compression ratio of the ring die can be customized according to the specific characteristics of the raw materials, while the surface of the pressure rollers undergoes special treatment to enhance material gripping capabilities.
Steam conditioning ensures thorough maturation of the material, resulting in finished pellets with a low pulverization rate and a smooth surface.
Energy Saving and Consumption Reduction
The granulator utilizes a gearbox transmission system to replace traditional belt drives; the gearbox features precision-ground gears, resulting in a shorter power transmission path and smooth, quiet operation. Additionally, the drying stage employs a low-temperature, high-airflow process, ensuring high thermal efficiency.
The PLC control system enables real-time monitoring of key parameters, ensuring that the equipment consistently operates within the optimal energy consumption range.
Eco-Friendly and Green
The entire processing workflow—from pulverizing to packaging—utilizes a closed-loop conveying system, effectively minimizing dust spillage. Furthermore, the drying and cooling stages are equipped with a two-stage treatment system—comprising pulse dust removal and a spray tower—to ensure the clean discharge of exhaust gases.
The entire production line complies with environmental regulations, enabling customers to easily pass environmental acceptance inspections.
Various Capacities
Many customers face challenges in terms of production capacity when choosing a chicken manure pellet mill. RICHI offers a variety of chicken manure pellet mill models for your selection; the specific parameters for each model are listed below.
Chicken manure pellet production
| Model | FZLH250 | FZLH320 | FZLH350 | FZLH420 | FZLH520 | FZLH678 | FZLH768 |
| Main Motor Power(kw) | 22 | 22 | 37 | 90 | 132 | 200 | 250 |
| Arch-Breaking Feeder Power(kw) | 2.2 | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring die inner diameter（mm） | 250 | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Granule Diameter(mm) | 4~12 | ||||||
| Output（T/H） | 1-1.5 | 2-3 | 3-5 | 6-8 | 9-12 | 18-22 | 22-26 |
Main Components
of Pellet Mill
Chicken manure pellet making machine is mainly composed of three main parts: feeder, mixing unit and main pelletizing. The following is a brief introduction to the main components of the pellet maker.
Drive
Variable-Frequency
The feeding system adopts a combined design of arch-breaking feeder and forced feeder. The arch-breaking feeder features a power range of 2.2–4 kW, effectively preventing material bridging inside the hopper. The forced feeder runs at 0.75–1.5 kW, which evenly conveys materials into the pelleting chamber to avoid blockages. It ensures continuous and stable feeding and perfectly adapts to the high viscosity of chicken manure materials.
Mixing Unit
High-Quality Stainless Steel
Chicken manure features high nitrogen content. After fermentation, it needs to be uniformly blended with auxiliary materials such as straw to adjust the carbon-nitrogen ratio. The mixing unit adopts a ribbon blender with continuous discharging capability. Its patented blade design enhances material flow, shearing and mixing performance, making it especially suitable for high-moisture wet materials after fermentation.
Granulation Main Unit
Intelligent and Efficient
The pelleting main unit adopts the FZLH series organic fertilizer pellet mill. It comes with a ring die inner diameter of 250–762 mm and a main motor power ranging from 22 kW to 250 kW. Given the low fiber content of chicken manure, it is equipped with high-precision gear transmission. The ring die undergoes special heat treatment to resist cracking. The pellet forming rate reaches over 98%, with finished pellet diameters adjustable from 4 mm to 12 mm.
RICHI Pellet Mill for Sale
You are free to select a pellet machine with the specific capacity that best suits your personal budget and desired production output.
Small-scale granulation plant (1-3 tons/hour)
Designed for small-scale farms, individual farmers, and newcomers to the organic fertilizer industry. Main equipment includes: vertical crusher, ribbon mixer, organic fertilizer granulator, drum dryer, cooler, drum screen, pulse dust collector, and stainless steel packaging scale.
Raw material: single fermented feed such as chicken or cow manure; finished product diameter: 4-12mm.
Annual Output: 6,000-18,000 tons
Total Power : 45-90kw
Medium-scale granulation plant (3-8 tons/hour)
Designed for medium-sized organic fertilizer processing plants, large-scale farms, and regional fertilizer suppliers. The production line is equipped with a settling chamber and pulse dust collector, with total dust emissions ≤30mg/m³, meeting environmental standards.
The finished granules are used for farmland or horticultural fertilization, have a high organic matter content, and can be used to improve soil structure.
Annual Output : 18,000-48,000 tons
Total Power : 90-150kw
Large-scale granulation plant (8-15 tons/hour)
Designed for large-scale organic fertilizer processing plants, government-supported projects. The entire line uses PLC touch screen centralized control, requiring only 2-3 operators per shift, and supports remote monitoring.
The moisture content of the material entering the dryer after granulation is ≤25%, and the moisture content exiting the dryer is reduced to ≤12%, meeting long-term storage requirements.
Annual Output : 48,000-90,000 tons
Total Power : 200-350kw
Ultra-large-scale granulation plant (15-25 tons/hour)
Designed for large-scale agricultural circular economy parks, livestock and poultry breeding groups, and export enterprises. We provide turnkey projects covering the entire process, including electrical control systems, installation, commissioning, and training. Transportation can be handled by bulk bag shipping.
Finished pellets will not crumble within 2 hours of being immersed in water.
Annual Output : 90,000-150,000 tons
Total Power: 400-600kw
chicken manure pellet Process Flow
RICHI chicken manure pellet mills offer modular solutions from raw material receiving to finished product packaging. Below is the processing flow of their production line.
Fermentation
After mixing chicken manure with carbon sources such as crop straw, microbial inoculants are added to initiate fermentation. A compost turner periodically turns the material to facilitate the decomposition of organic matter, deodorization, and sterilization.
Crushing
Materials are pulverized using a vertical wet-material chain crusher featuring a screenless design, followed by drum screening.
Mixing
Utilizing a belt scale batching system and a ribbon mixer, the fermented chicken manure and inorganic nutrients are mixed in precise proportions.
Granulation
The FZLH series granulator for organic fertilizers features a ring-die and roller structure, achieving a molding rate of up to 98%.
Drying and Cooling
After granulation, the pellets enter a rotary dryer; a self-constructed hot air furnace can be utilized as the heat source. Following drying, they are cooled to room temperature using a counter-flow cooler.
Screening and Packaging
The cooled granules are classified by a vibrating screen, and the qualified granules proceed to the automatic packaging system.
Precisely
Tailored Solutions
Based on the specific characteristics of the raw materials or site constraints, RICHI’s engineers will redesign the process workflow and adjust the quantity of required equipment.
chicken manure pellet case studies
●Algeria
3 T/H Organic Fertilizer Granulation Line
Main equipment: Cow Manure Dewatering Machine, Mixer, Windrow Turner, Organic Fertilizer Granulator.
- Installation Cycle : 50 Days
- Product dimensions : 4mm,6mm,8mm
●Hong Kong , China
3-4 T/H Ruminant Animal Feed Pelleting Production Line
Main equipment: hammer mill , dryer, mixer, pellet machine, cooler, vibration shifter , automatic packing machine, etc.
- Ingredients : 80% Fresh grass
- Product dimensions : 6-12mm
●Qatar
1-1.2 T/H Pigeon + Camel Feed Pelleting Production Line
Main equipment: 11 kW Animal Feed Crusher, 250 kg Drum Powder Mixer, 22 kW Feed Pellet Mill, Cooler, and Other Auxiliary Equipment.
- Ingredients : Corn, soybean meal, premixes
- Product dimensions : 2mm,3mm,4mm,6mm
●Thailand
10–12 T/H Organic Fertilizer Granulation Line
Main equipment: Hammer Mill, Mixer, Windrow Turner, Organic Fertilizer Granulator, Cooler, Packaging Machine.
- Installation Cycle : 60 Days
- Product dimensions : 6mm,8mm
Our
Core Strengths
RICHI Machinery remains steadfastly focused on innovative R&D and precision manufacturing. Through our scientifically tailored services, comprehensive after-sales support, and advanced, reliable equipment, we empower you to maximize your profits.
Scientific Customization Services
Our company has a dedicated R&D and design team to provide customized services. Whether for household or commercial use, we will develop a tailored manure pellet production line that is efficient and stable for your needs.
Comprehensive After-Sales Support
RICHI provides comprehensive after-sales support and have a global network of maintenance personnel. If any issues arise with the equipment, our after-sales team will immediately provide solutions, and dedicated technicians will offer on-site repairs within 48 hours to minimize your downtime.
Advanced Reliable Technology
RICHI Manufacturing is backed by an advanced technology system. We have obtained certifications including European CE and Swiss SGS. Our strong technical capabilities ensure reliable production for your operations.
Global Service Experience
RICHI chicken manure pellet mills cover more than 120 countries and regions worldwide, adapting to different climates and farming models. With thousands of successful customer cases, their quality has stood the test of time.
About RICHI Machinery
Based in China and serving global markets, RICHI Machinery is a global manufacturer and engineering service provider specializing in pellet production equipment and complete processing systems. From feed, biomass, and organic fertilizer to cat litter and agricultural waste recycling, we help customers build efficient, reliable, and scalable production solutions tailored to their raw materials, capacity requirements, and market goals. With projects delivered across multiple industries and countries, our focus is always on practical performance, long-term operation, and customer success.
Advanced Engineering & Intelligent Manufacturing
Driven by technology and manufacturing expertise, RICHI integrates process engineering, equipment R&D, intelligent manufacturing, and project delivery into one complete service system. Our modern production facilities, precision machining capabilities, and experienced technical team allow us to provide customized equipment, complete plant design, automation integration, installation guidance, and ongoing technical support. From single machines to fully integrated production lines, we deliver solutions designed for stability, efficiency, and sustainable production growth.
Frequently Asked Questions
The following is a summary of frequently asked questions regarding configuration, installation, after-sales service, pricing, and complete plant setup, to help you quickly understand RICHI products.
Can organic fertilizer pellet mills produce both pellet fertilizer and powder fertilizer?
Yes, achievable by adjusting production workflow.For powdered organic fertilizer: Fermented and crushed materials bypass the pellet mill and directly enter screening and packaging, while the pellet mill can remain standby for pellet production.For pellet organic fertilizer: Activate the pellet mill; materials go through pelleting, drying, cooling and screening before final packaging.
Can a chicken manure pelletizer directly process fresh chicken manure?
We do not recommend doing so. Fresh chicken manure has a moisture content as high as 70%–80% and requires prior dehydration or fermentation treatment. We can configure a pre-dehydrator for materials with high moisture content.
Is the equipment sensitive to impurities in chicken manure, such as feathers and pebbles?
The front end of the production line is equipped with a rotary pre-cleaning screen and a permanent magnetic drum, which effectively remove stones and ferrous impurities. Any small amount of feathers present will be severed during the crushing stage and will not interfere with the pelletizing process.
Can the equipment simultaneously process manure from other types of livestock?
Yes. Our equipment is designed with versatility in mind and can process materials such as pig and sheep manure; it simply requires adjusting the fermentation cycle and the ring die compression ratio.
Core Equipment Configuration?
All equipment uses Siemens motors and SKF bearings; all parts in contact with materials are made of stainless steel.
