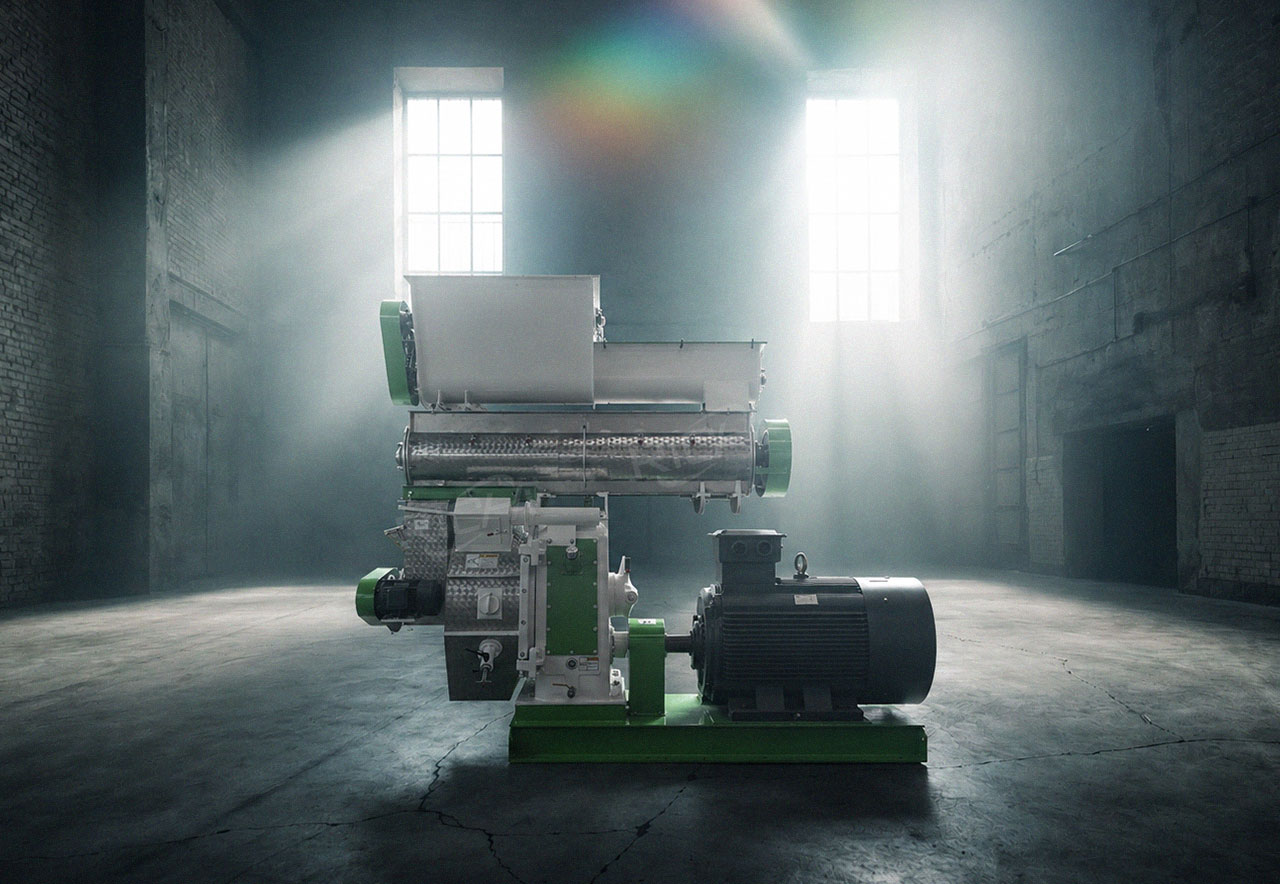

Cattle feed pellet mill
In modern animal husbandry, the performance of feed processing equipment—particularly pellet mills—directly determines the quality of the feed, its conversion efficiency, and the economic benefits of the farm.
Production capacity : 1-100t/h
RICHI Cattle
Feed Pellet Mill
Since its establishment in 1995, RICHI has focused on feed machinery for 31 years, committed to achieving maximum long-term value with the lowest operating costs.
Product Introduction
As ruminants, cattle possess a digestive system that differs markedly from that of monogastric animals, imposing specific requirements regarding feed particle size, fiber content, and nutritional composition. Consequently, the cattle feed pelletizer is a specialized piece of equipment designed specifically to transform powdered feed ingredients—including high-fiber raw materials such as corn silage, high-quality hay, wheat bran, and grass meal—into cylindrical pellets through a process of mechanical extrusion.
With 31 years of deep expertise in the field of feed machinery, RICHI specializes in the R&D and manufacturing of feed processing equipment for ruminants, offering a series of cattle feed pellet mills distinguished by their exceptional performance and stable reliability.
Widely used across six continents
RICHI cattle feed pellet machines have been widely utilized across six continents: Asia, Europe, Africa, North America, South America, and Oceania.
Whether in the hot, arid climate of South Africa or the cold pastures of North America, the equipment maintains stable operation, demonstrating exceptional environmental adaptability.
Abundant variety of raw materials
Our equipment is capable of processing a wide variety of feed ingredients, including high-quality hay (including legumes), corn silage, fresh-cut forage, corn, root crops (carrots, beets), by-products (brewers’ grains, soybean dregs), soybean meal, wheat bran, salt, baking soda, and others.
Particularly for lightweight materials—such as hay containing 20% leguminous forage—the equipment employs forced feeding technology, effectively resolving the issue of difficult feeding.
Applicable to all breeds of cattle
The equipment is suitable for various cattle breeds—including heifers, calves, breeding stock, beef cattle, dairy cattle, and show cattle—as well as their different growth stages.
By adjusting the ring die compression ratio and pellet size, it is possible to precisely produce feed that meets the diverse nutritional requirements of cattle, thereby promoting growth and development while enhancing lactation performance.
Multi-purpose machine
This production line offers multi-purpose functionality; by changing the ring die and adjusting process parameters, it can simultaneously produce both sheep and chicken feed.
Tailored to the specific dietary requirements of ruminants—such as cattle—which necessitate the inclusion of crude fiber ingredients, moderate feed hardness, and appropriate particle size, this machine is equipped with a single-layer conditioner and a large-aperture ring die. It is capable of producing highly durable pellets with diameters ranging from 4 to 8 millimeters that are resistant to chewing.
Various Capacities
Many customers face challenges in terms of production capacity when choosing a cattle feed pellet mill. RICHI offers a variety of cattle feed pellet mill models for your selection; the specific parameters for each model are listed below.
Cattle feed production
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 |
| Forced feeder power(kw) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Power (kw) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Modulator power(kw) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Die Inner Diameter（mm） | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Finished Pellet Diameter (mm) | 2~12 | |||||||
| Output （T/H） | 1~1.5 | 3~4 | 5~6 | 10~12 | 15~16 | 20~22 | 30~33 | 38~40 |
Main Components
of Pellet Mill
Cattle feed pellet making machine is mainly composed of three main parts: feeder, conditioner and main machine. The following is a brief introduction to the main components of the pellet maker.
Mixing Systems
Necessary and high-quality
Our mixing system offers three structural configurations—single-shaft paddle, dual-shaft paddle, and ribbon—and is equipped with top-mounted atomizing nozzles to facilitate the uniform addition of liquids such as oils and molasses. For formulations with a high proportion of forage, the machine ensures the thorough blending of forage and grains by adjusting the paddle speed and mixing duration, thereby providing a stable and uniform mixture for the subsequent pelletizing process.
Tempering Unit
High-Quality Stainless Steel
The unit casing features an embossed 304 stainless steel design, while the interior houses a heavy-duty, extended conditioning chamber equipped with forged blades. Furthermore, a 1-to-3-layer conditioner can be flexibly selected based on the specific characteristics of the raw materials, thereby effectively enhancing the degree of material conditioning and the overall pelletizing performance(Ruminants such as cattle require a single-layer conditioner).
Granulation Main Unit
Intelligent and Efficient
Equipped with a high-efficiency Siemens motor, the unit features an intelligent power regulation system. The ring die and pressure rollers are constructed from stainless steel and 42CrMo alloy, designed to minimize wear and tear. Furthermore, the machine is fitted with safety protection mechanisms that automatically cut off power in the event of abnormal operating conditions, thereby ensuring the safe and secure operation of the equipment.
Cattle Feed Pellet Mill for Sale
You are free to select a cattle feed pellet machine with the specific capacity that best suits your personal budget and desired production output.
Small-scale cattle Pelletizing (1-5 tons/hour)
Specifically designed for small-scale farmers and animal feed suppliers entering the animal feed production industry for the first time. Key equipment includes: hammer mill, ring-die pellet mill, single-shaft mixer, counter-flow cooler, crumbler, pulse dust collector, vibrating screen, and packaging machine.
Applicable Material Types and Particle Sizes: 1–12 mm (Fully Adjustable Range)
Annual Output: 7,000-30,000 tons
Total Power : 45-150kw
Medium-scale cattle Pelletizing (5-7 tons/hour)
Specifically designed for farm owners, medium-sized feed mills, and animal feed suppliers entering the animal feed production industry for the first time. Compatible with various layouts.
Main Equipment: 55 kW chain crusher, 55 kW pellet mill, 11 kW single-shaft double-paddle mixer, counter-flow cooler, pulse dust collector, , Packaging Machine, vibrating screen.
Annual Output : 30,000-50,000 tons
Total Power : 150-180kw
Large-scale cattle Pelletizing (8-24 tons/hour)
Specifically designed for large-scale chain feed mills and pioneering animal feed suppliers, this solution employs differentiated processes and automation to reduce labor costs.
Main Equipment: 110 kW Hammer Mill, 110 kW Pellet Mill, 15 kW Single-Shaft Screw Mixer, Counterflow Cooler, Crusher, Bucket Elevator, Automatic Bagging System, and Electrical Control Cabinet.
Annual Output : 60,000-110,000 tons
Total Power : 180-350kw
Ultra-large-scale cattle Pelletizing (30-72 tons/hour)
Specifically designed for large-scale chain feed mills and animal feed suppliers entering the animal feed production industry for the first time.
Featuring computerized batching, the system encompasses the entire production workflow—from raw material receiving and cleaning to screening and packaging—providing you with a complete, turnkey engineering solution.
Annual Output : 240,000–300,000 tons
Total Power: 600-800kw
Cattle feed Process Flow
RICHI cattle feed pellet mills offer modular solutions from raw material receiving to finished product packaging. Below is the processing flow of their production line.
Receiving and Cleaning
It separates impurities and ferrous contaminants from the raw materials while simultaneously utilizing a dust removal system to extract dust, ensure explosion safety, and recover fine powders—thereby guaranteeing the purity of the raw materials, protecting downstream equipment, and minimizing waste.
Crushing
Pulverize the cleaned raw materials (including forage) to a particle size suitable for bovine rumination (typically greater than 2 mm, though for older cattle, this may be reduced to less than 1 mm), and select a specialized pulverizer based on whether the raw materials contain forage.
Mixing
Based on the proportion of forage specified in the feed formula, it selects an appropriate mixer to carry out the blending process.
Granulation
For feed containing grass meal intended for ruminants, a forced feeder must be installed to ensure pelletizing quality.
Cooling and Screening
The hot, moist granules (80–90°C) produced after granulation must be cooled in a counter-flow cooler, then classified using a screening machine to remove fines.
Packaging and Transportation
Materials in the finished product warehouse can be bagged using automatic packaging machines or transported away by bulk trucks; throughout the entire production line, the handling of raw materials and finished products is accomplished by conveying equipment such as scraper conveyors and elevators.
Precisely
Tailored Solutions
Based on the specific characteristics of the raw materials or site constraints, RICHI’s engineers will redesign the process workflow and adjust the quantity of required equipment.
cattle feed pellet case studies
●South Africa
10T/H Cattle Feed Pelleting Production Line
Main equipment: 110kw feed crusher, 1000kg feed mixer, 1000kg batching scale, 110kw feed pellet mill, cooler, crusher, screening machine, coal-fired boiler, etc.
- Ingredients : Corn, Soybean Meal, 50% Grass
- Product dimensions : 3mm, 5mm, 8mm
●Saudi Arabia
5-6T/H Cattle Feed Pelleting Production Line
Main equipment: 90KW cattle feed grinder , 3500kg cattle feed mixer , pellet cooler, pellet crusher, screening machine, automatic packaging machine, etc.
- Ingredients : Corn, Soybean Meal, Alfalfa
- Product dimensions : 1-6mm
●USA
3-4T/H Poultry Chicken Feed Pelleting Production Line
Main equipment: 90kW cattle feed hammer mill, 1000kg cattle feed mixer, 160kW cattle feed pellet mill (ex-factory price), cooler, pellet crusher, etc.
- Ingredients : Silage, Corn, Alfalfa, Wheat Straw, etc.
- Product dimensions : 1-12mm
●Hong Kong , China
3-4T/H Ruminant Animal Feed Pelleting Production Line
Main equipment: hammer mill , dryer, mixer, storage bin , pellet machine, cooler, vibration shifter , automatic packing machine, etc.
- Ingredients : 80% Fresh grass
- Product dimensions : 6-12mm
Our
Core Strengths
RICHI Machinery remains steadfastly focused on innovative R&D and precision manufacturing. Through our scientifically tailored services, comprehensive after-sales support, and advanced, reliable equipment, we empower you to maximize your profits.
Scientific Customization Services
Our company has a dedicated R&D and design team to provide customized services. Whether for household or commercial use, we will develop a tailored feed pellet production line that is efficient and stable for your needs.
Comprehensive After-Sales Support
RICHI provides comprehensive after-sales support and have a global network of maintenance personnel. If any issues arise with the equipment, our after-sales team will immediately provide solutions, and dedicated technicians will offer on-site repairs within 48 hours to minimize your downtime.
Advanced Reliable Technology
RICHI Manufacturing is backed by an advanced technology system. We have obtained certifications including European CE and Swiss SGS. Our strong technical capabilities ensure reliable production for your operations.
Global Service Experience
RICHI cattle feed pellet mills cover more than 120 countries and regions worldwide, adapting to different climates and farming models. With thousands of successful customer cases, their quality has stood the test of time.
About RICHI Machinery
Based in China and serving global markets, RICHI Machinery is a global manufacturer and engineering service provider specializing in pellet production equipment and complete processing systems. From feed, biomass, and organic fertilizer to cat litter and agricultural waste recycling, we help customers build efficient, reliable, and scalable production solutions tailored to their raw materials, capacity requirements, and market goals. With projects delivered across multiple industries and countries, our focus is always on practical performance, long-term operation, and customer success.
Advanced Engineering & Intelligent Manufacturing
Driven by technology and manufacturing expertise, RICHI integrates process engineering, equipment R&D, intelligent manufacturing, and project delivery into one complete service system. Our modern production facilities, precision machining capabilities, and experienced technical team allow us to provide customized equipment, complete plant design, automation integration, installation guidance, and ongoing technical support. From single machines to fully integrated production lines, we deliver solutions designed for stability, efficiency, and sustainable production growth.
Frequently Asked Questions
The following is a summary of frequently asked questions regarding configuration, installation, after-sales service, pricing, and complete plant setup, to help you quickly understand RICHI products.
What role does the conditioner play in the cattle feed production process?
The main function of a conditioning machine is to heat and condition the material before pelleting, so that the material fully absorbs heat, moisture and liquid, so that the starch paste, to achieve or close to the requirements of the pelleting process.
What can replace corn in cattle feed?
You can use any energy feed to replace corn in cattle feed! Many companies these days use molasses instead of corn, because sugarcane molasses is also a good fit for cows and other ruminants.· However, it’s best not to replace corn at all—not even partly—since other energy feeds just don’t work as well as corn.
How to feed dairy cows with alfalfa?
When you feed fresh alfalfa to dairy cows, chop it up first, then mix it with wheat straw, corn stalks, or other similar feeds. For dried alfalfa, you can also chop it and mix it with roughage like wheat straw and corn stalks before feeding. Alfalfa should make up about 15-20% of all the roughage you give to the cows.
Can cattle feed pellet mill handle feed with hay meal?
Yes. Machine comes with a special forced feeder and a longer conditioner. This allows it to work well even with recipes that have a lot of hay meal.Our South African customer uses 50% hay meal in their feed – and it works great.
Can you build a complete feed plant for me?
Yes. We have a lot of experience in building feed mills. We offer turnkey service – from design and making the equipment to installation and startup. We can also provide layout drawings, flowcharts, 3D drawings, and more for free.
Not satisfied with the price?
We recommend suitable models and processes based on customer needs, patiently answer questions, and provide multiple solutions for users to choose from.
