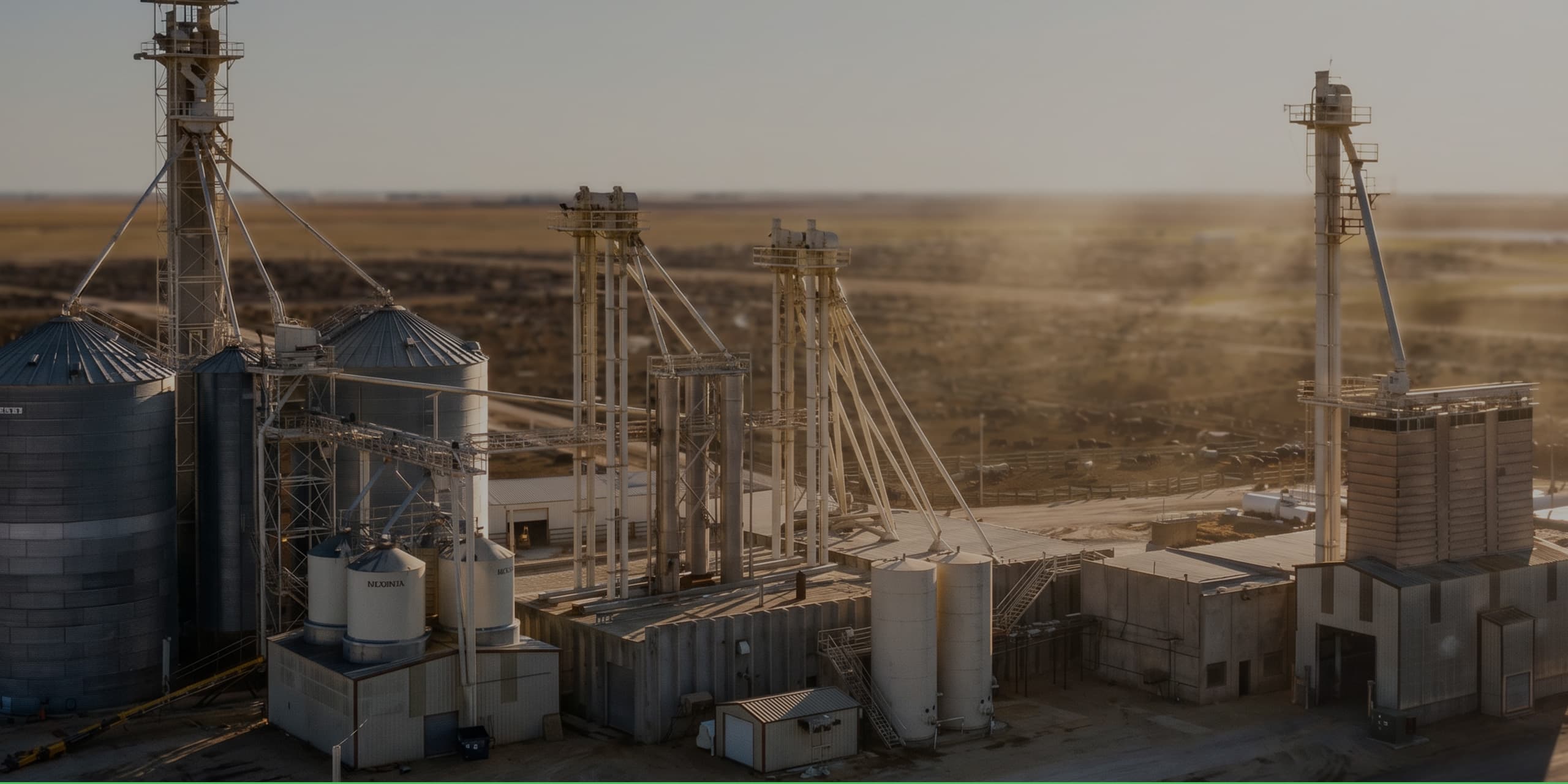

Poultry Feed Production Line
We offer turnkey poultry feed production line, providing a one-stop feed processing solution from project planning, equipment installation and commissioning to personnel training and after-sales service. These lines are suitable for processing feed for poultry such as chickens, ducks, and geese. We can also customize production lines to meet your specific needs.
Poultry Feed Production Line Process
A poultry feed production line refers to an automated production system that processes raw materials such as corn, soybean meal, wheat bran, premixed feed, and nutritional additives into high-quality feed pellets through processes such as crushing, mixing, pelleting, cooling, screening, and packaging.
Cleaning Section
Raw materials cannot be directly fed into the pellet mill because they contain impurities such as stones and clods of earth. Therefore, you need to use cleaning equipment such as a drum pre-cleaner and a permanent magnet drum to remove impurities to ensure that the machine does not malfunction and that the quality of the pellets is maintained.
Crushing Section
After cleaning, the material can be directly fed into the SFSP water-drop hammer mill , where it is crushed under the impact of the high-speed rotating hammer blades.
Mixing Section
You can use mixing equipment to mix materials with nutrients such as vitamins and amino acids according to your needs, providing essential nutrients for livestock and poultry growth.
Pelleting Section
After the materials and nutrients are thoroughly mixed, they enter the modulator and come into full contact with steam. This not only provides excellent sterilization but also cooks and gelatinizes the materials, making them easier for poultry to digest. The modulated materials then enter the pelleting chamber, where they are extruded and shaped under the pressure of the ring die and rollers, and finally cut into the desired pellet length by a flat cutter.
Cooling Section
The material, after being processed, is too hot to be packaged directly. In this case, you need to use a counter-flow cooler to cool the material.
Screening Section
After the material cools, a rotary grading screen removes any broken pieces and non-compliant particles, ensuring that the finished particles are of uniform size. Qualified particles proceed to the packaging process, while unqualified particles and powder are reprocessed.
Packaging Section
As mentioned in the previous step, for pellets that meet the requirements, you can use a finished product packaging scale to automatically weigh and package them. At this point, the feed pellet production is complete.
Applications of Poultry Feed Production Line
Our poultry feed production line is adaptable to poultry farming and feed processing scenarios of different scales and needs. It is both practical and economical, and can help you reduce costs, increase production capacity, and obtain considerable profits.

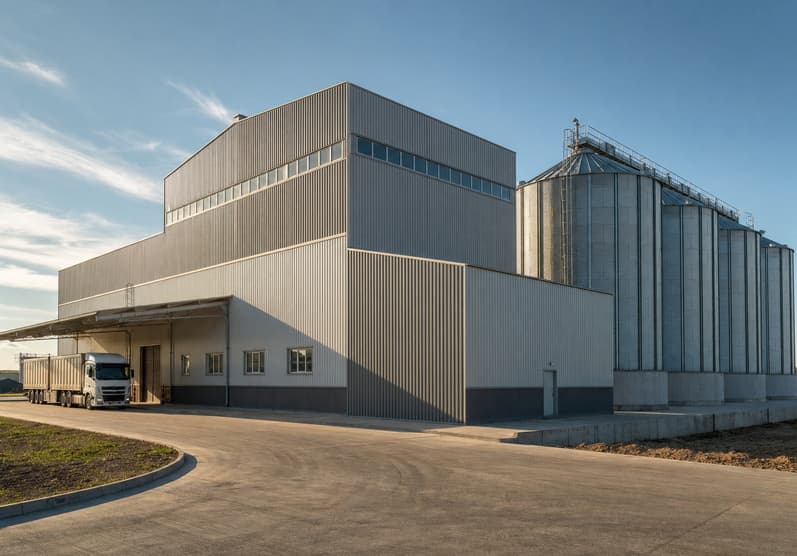

Broiler Farm
The quality of feed directly determines the fattening results and growth rate of broiler chickens, thereby impacting your ultimate profits. Our poultry feed production line features stable output and produces high-quality pellets that are easily digestible and rapidly absorbed; it is capable of meeting the specific dietary and nutritional requirements of broilers at every stage of growth, helping you effortlessly achieve highly efficient poultry farming.

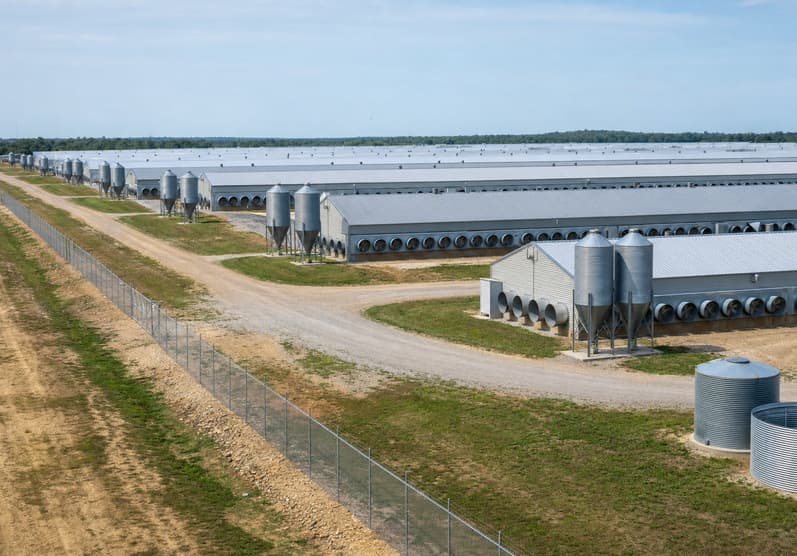

Breeding Farm
Are you still troubled by the complexities and high costs associated with purchasing feed for a diverse range of poultry species? With a Richi poultry feed production line, you can effortlessly manufacture feed for chickens, ducks, geese, and other poultry. This eliminates the hassle of sourcing multiple types of feed, significantly reduces procurement costs, and saves you both time and effort.

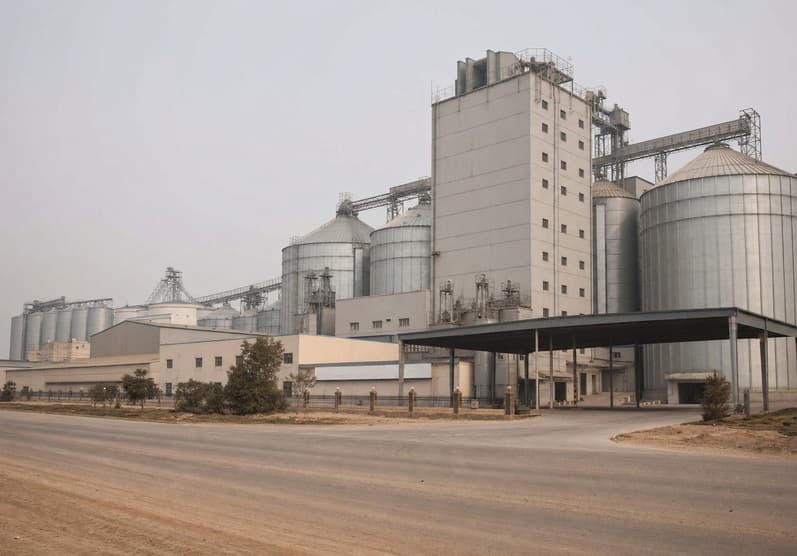

Poultry Feed Mill
As a poultry feed mill, possessing a suitable poultry feed production line is of paramount importance; we are confident that Richi will be your top choice. Our production lines offer an output capacity ranging from 1 to 100 tons per hour and are capable of processing feed for a wide variety of poultry—including chickens, ducks, geese, and pigeons—thereby helping you reduce costs and enhance your competitive edge.

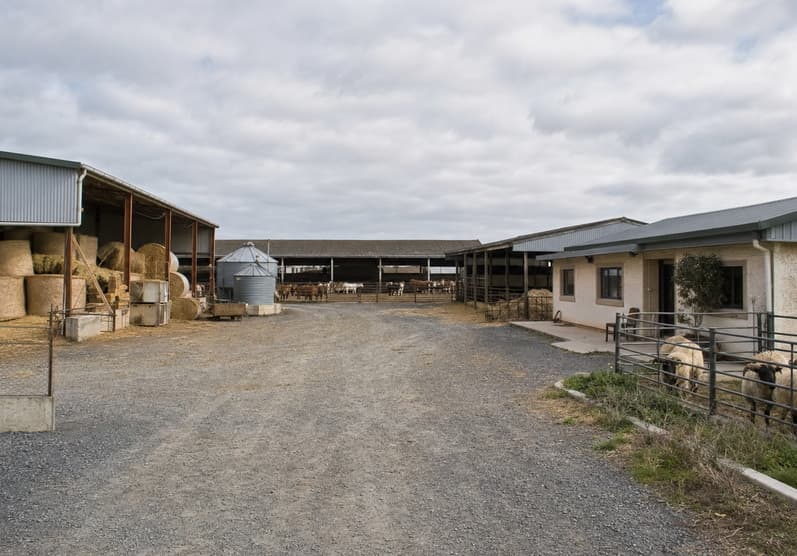

Breeding Cooperative
For breeding cooperatives, a dedicated poultry feed production line is indispensable; centralized, unified feed production not only ensures consistent feed quality but also effectively reduces feed costs. Our production line offers flexible output capabilities-sufficient to meet the breeding needs of all cooperative members-and is remarkably easy to operate, requiring just two days of training to master. This enables cooperatives to truly maximize their economic benefits.
Finished Pellets Display
Our equipment can produce pellets of different diameters for various animals (such as chickens, ducks, geese, pigeons, etc.). Of course, we can also customize pellets to meet your specific needs.
Duck Feed Pellets
Goose Feed Pellets
Pigeon Feed Pellets
Broiler Feed Pellets
Layer Feed Pellets
Quail Feed Pellets
Ostrich Feed Pellets
Suitable Raw Materials
Our equipment can use a wide range of raw materials.
Corn
A common ingredient in poultry feed, high in starch and rich in nutrients.
Wheat
Can partially replace corn in poultry feed processing; palatable and finely milled.
Rice
A natural grain feed ingredient; stable supply and high cost-effectiveness
Wheat Bran
Rich in crude fiber, which can regulate the digestive system
Rice Bran
Rich in oils and trace elements; nutritionally balanced and low cost
Soybean Paste
A high-quality, high-protein feed ingredient with a reasonable amino acid ratio
Complete Projects
Our poultry feed production lines have a global footprint and are the preferred choice for many users.

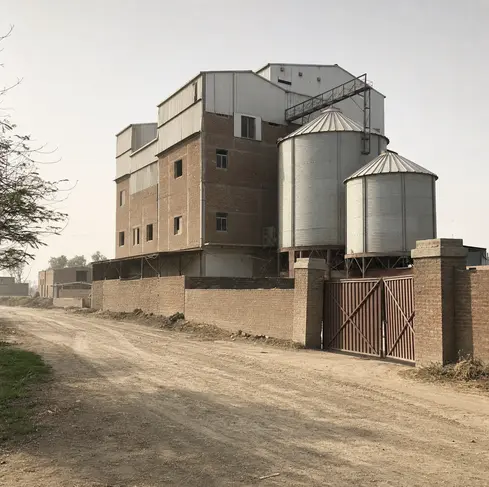

●Pakistan
10-15T/H Poultry Feed Pellet Production Project Case
The client invested in and built the largest chicken feed processing plant in the region. We provided a customized turnkey solution, including a complete set of core equipment such as a crusher, batching system, and pellet mill. The production line was installed in just 40 days.
- Output : 10-15t/h
- Power : 415kw
- Pellet diameter : 2-6mm
●Colombia
3-5T/H Complete Chicken Feed Pelleting Production Line
Colombia has a highly developed poultry industry, with poultry feed accounting for 70% of total feed production. We provided a 3-5t/h chicken feed pelleting production line that perfectly combined a fully automated batching system with advanced technology.
- Output : 3-5t/h
- Power : 85kw
- Pellet diameter : 1-2mm、3mm、4mm、6mm
●Uzbekistan
10-15T/H Chicken Feed Processing Production Line Project
We customized a 10-15t/h chicken feed production line for our client. The project occupies 12m×12m×25m, and installation, commissioning, and formal production were completed within 60 days.
- Output : 10-15t/h
- Power : 410kw
- Pellet diameter : 2-6mm

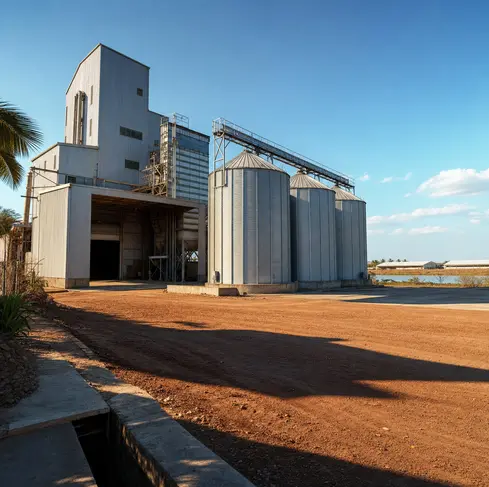

●Mexico
10-12T/H Poultry Feed Pellet Mill Case
A medium-sized feed production plant in Querétaro, Mexico, decided to replace its aging pellet mills with our equipment to meet peak broiler feed orders and stably produce high-quality 3-4mm feed pellets due to insufficient capacity and substandard pellet durability.
- Output : 10-12t/h
- Power : 110kw
- Pellet diameter : 3-4mm
About RICHI Machinery
Based in China and serving global markets, RICHI Machinery is a global manufacturer and engineering service provider specializing in pellet production equipment and complete processing systems. From feed, biomass, and organic fertilizer to cat litter and agricultural waste recycling, we help customers build efficient, reliable, and scalable production solutions tailored to their raw materials, capacity requirements, and market goals. With projects delivered across multiple industries and countries, our focus is always on practical performance, long-term operation, and customer success.
Advanced Engineering & Intelligent Manufacturing
Driven by technology and manufacturing expertise, RICHI integrates process engineering, equipment R&D, intelligent manufacturing, and project delivery into one complete service system. Our modern production facilities, precision machining capabilities, and experienced technical team allow us to provide customized equipment, complete plant design, automation integration, installation guidance, and ongoing technical support. From single machines to fully integrated production lines, we deliver solutions designed for stability, efficiency, and sustainable production growth.
Frequently Asked Questions
Machinery provides everything from animal feed pellet machines, biomass pellet machines to aquaculture extruders to ensure high-quality pellet production efficiency and high-qu.tion quality.
What types of feed can your poultry feed production line produce?
Our poultry feed production line is suitable for processing feed for various poultry species, including chickens, ducks, geese, and pigeons. It can produce different formulated pellets such as brooder feed, grower feed, fattening feed, and laying hen feed. If you have specific feed requirements, we can also provide suitable equipment solutions based on your formulation.
Is the feed pellet quality consistent?
Absolutely. The production line uses an automatic batching, uniform mixing, and stable pelleting system, which effectively improves pellet formation rate and uniformity. The produced feed pellets have a smooth surface, moderate hardness, and are less prone to pulverization, making them more conducive to poultry consumption and nutrient absorption.
Can the feed pellet size be adjusted?
Yes. By changing different sized ring dies, the production line can process feed pellets of different sizes from 1-8mm. For example, smaller pellets are typically used for brooder feed, while larger pellets are suitable for fattening feed. We will recommend the appropriate size based on your farming needs.
What is the actual output of the production line?
The production line output can be customized according to your needs. Common configurations range from 1-20t/h. Actual output will be affected by raw material type, pellet size, and equipment configuration. We will provide a reasonable solution based on your budget and production goals.
What raw materials does the production line support?
The equipment can process a variety of common feed raw materials such as corn, wheat, soybean meal, bran, fishmeal, and grass meal, and supports the production of different poultry feed formulations. If you have special raw materials, you can also communicate with us in advance to test the solution.
Do you support customized production solutions?
Absolutely. We can provide customized poultry feed production line solutions based on your site area, capacity requirements, raw material types, and automation requirements to help you conduct production more efficiently.
