RABBIT Feed Pellet Mill
Corn, soybean meal, bran, alfalfa, hay…you only need a rabbit feed pellet machine to turn these materials into feed that rabbits love to eat!
Capacity: 1-40T/H
Power: 22-315KW
Raw materials: cereals, fodder, premix, etc.
Particle size: 1-12mm (common size for rabbit feed: 1-6mm)
Price range: $7,000-$100,000

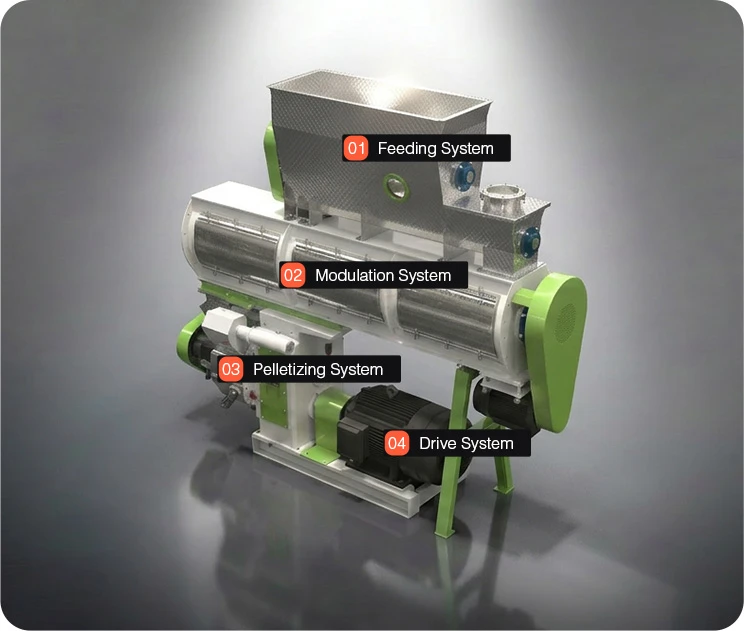

Equipment Structure of
Rabbit Feed Pellet Mill
The RICHI rabbit feed pellet machine has a ring-mold structure with good quality and low energy consumption. The processed pellets are uniform and dense, and rabbits love to eat them.
The Magic Happens Inside The Design
In view of the common raw material processing difficulties in rabbit feed processing, Ruiqi Rabbit Feed Pellet Machine adopts a heavy-duty ring-die pellet system, which can easily handle high-fiber raw materials such as alfalfa, straw, and hay. Engineers carefully designed every component of this machine, enabling it to operate in various production environments.
Feeding System
It features forced feeding and variable frequency feeding. On the one hand, it can feed relatively light materials to the feeder steadily. On the other hand, an adjustable feeding speed prevents the machine from clogging due to overfeeding or wasting electricity due to underfeeding.
Careful feeding design ensures the smooth operation of the production line.
Modulation System
The function of the modulator is to mature, gelatinize and sterilize the raw materials. The modulator of the RICHI granulator is longer and thicker than ordinary machines on the market. The stainless steel casing effectively resists moisture erosion and material impact during high-temperature conditioning.The paddle made by forging process can flexibly adjust the angle to thoroughly mix the raw materials.
Pelletizing System
After conditioning, the material enters the pelletizing chamber, where the ring die and roller press it into uniform cylindrical pellets. Then, the cutters on both sides of the granulation chamber cut it into granules of uniform length.
The diameter of the ring die and the position of the cutter are both adjustable. With just one machine, you can make rabbit feed in different sizes.
Power System
The machine features a Siemens motor with higher power and lower energy consumption, providing strong power for the entire process of feeding, conveying, and pelletizing.
Surprisingly, the machine abandons the traditional belt transmission with low efficiency and poor stability, and uses a gear transmission system to completely avoid the problem of transmission slippage. Even better, with industrial-grade bearings, heavy-duty bases, etc., this machine simply achieves the ultimate in stable conveying operation.
Parameter Table
The production capacity of Ruiqitu feed pellet machine covers 1-40T/H, and can reach a maximum of 100T/H.
Usually, the feed particle size for young rabbits is 1-3mm, and the feed particle size for adult rabbits and commercial rabbits is about 4-6mm.
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 | SZLH858 |
| Capacity(T/H) | 1-2 | 3-4 | 5-7 | 8-12 | 10-18 | 15-25 | 20-30 | 25-40 | 28-45 |
| Main Motor Power(kw) | 22 | 37 | 55 | 110 | 160 | 180-200 | 220-250 | 250-280 | 315-355 |
| Feeder Motor Power(kw) | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| Conditioner Power(kw) | 1.5 | 2.2 | 3 | 7.5 | 11 | 11 | 11 | 11 | 15 |
| Dia.of Ring Die(mm) | 250 | 320 | 350 | 420 | 508 | 558 | 678 | 768 | 858 |
| Final Pellet(mm) | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 | 2-18 |
These data come from the rabbit feed pellet machine operating at rated capacity within a complete production line.
Core Advantages of
Rabbit Feed Pellet Machine
This feed pellet machine truly follows rabbits’ dietary characteristics in its design. We pay attention to the differences between rabbits of different types and growth stages, and specially designed this machine with superior performance.
The future is long, let RICHI feed pellet machine save your worries.
Flexible and adjustable production
As a feed pellet machine that truly understands rabbits, the machine can make whatever feed different types of rabbits like to eat according to the formula. What size pellets are suitable for rabbits at different growth stages, the machine can produce corresponding sizes. It can be used on a small scale in your own breeding farm or applied to a production line for large-scale production.
The pellets are delicious and not wasted
The modulator of the pellet machine is very good – longer and thicker than those on the market, with a stainless steel machine shell and forged paddles with adjustable angles.
Most pellet mills on the market have only one conditioner layer. Our conditioner can hold two or three layers. So during conditioning, the material heats evenly and mixes well. It also cooks more thoroughly. The resulting pellets have balanced nutrition. They also taste better. The powdering rate drops significantly.
The equipment is safe and durable
The core components of the machine are made of diamond material that is more wear-resistant and corrosion-resistant, and the bottom uses a heavy-duty frame and high-strength shock-absorbing pads to reduce the impact wear of key parts caused by vibrations during production.
There is a safety interlock device next to the granulation room that is monitored in real time. If the pressure or resistance exceeds the standard, the safety pin will break, causing the travel switch to cut off power. It is no exaggeration to say that our equipment is safe and durable.
Application Scope of Feed Pellet Mill
According to different production capacities, rabbit feed pellet machines can be divided into parallel molds and ring molds. If you have high requirements on production capacity and feed quality, we recommend RICHI SZLH series ring die pellet mill, which can produce 1-40T/H. We can even help you design a rabbit feed production line as needed.
Small Family Farms
For individual farmers and family farms with relatively small breeding scale (less than 200 rabbits), it is more cost-effective to choose a small pellet machine with a production capacity of about 0.5T/H. The feed produced by one machine can completely supply the farm.
Medium-Sized Farms And Processing Plants
For medium-sized farms with less than 1,000 rabbits and local feed processing plants, a ring-die feed pellet machine with a capacity of 1-2T/H is recommended. The machine has strong continuous operation capability, which can not only meet production capacity needs, but also ensure the stability of production.
Large-Scale Breeding Complex And Feed Production Line
For large-scale rabbit farms or rabbit feed integrated production lines with higher production capacity requirements, we recommend RICHI SZLH series heavy-duty ring-die rabbit feed pellet machines with a capacity of 1.5-40T/H. They are generally connected to fully automatic production lines such as cleaning, crushing, cooling, screening and packaging, and can easily meet your needs.
The Whole Process of Rabbit Feed Production Line
In RICHI’s rabbit feed production line plan, the process from forage to pellet feed can be roughly divided into six steps:
Raw Material Cleaning
First, the cylinder primary cleaning screen and the permanent magnet cylinder will clean the raw materials and pick out impurities such as poisonous mold and iron filings and throw them away.
Crush to Appropriate Fineness
The raw materials are sent to the crushing bin by the rotary distributor for crushing and refinement, and are mashed into a fineness suitable for rabbit absorption and digestion.
Raw Material Distribution And Mixing
The smart batching scale will weigh the raw materials and send them to the mixing bin for mixing. Then it is sent to the silo before granulation by a bucket elevator.
Preparation And Granulation
After the raw materials enter the modulator, they are modulated under the action of steam for 10-20 seconds. When the temperature reaches 70-80°C, the modulation is almost complete.
The ring die and the pressure roller cooperate to squeeze the raw materials, and then the cutter cuts them into the required length.
Particle Cooling
The temperature of freshly made rabbit food is 80°C, so it needs to be sent to the cooling warehouse to cool down, otherwise it will easily break when exposed to direct air. Then the rotary grading screen selects the qualified ones and enters the finished product warehouse.
Automatic Packaging System
Most customers will choose automatic packaging machines, and the rabbit food will be packaged directly.
From the initial bundle of hay to the current bags of rabbit feed that can be sold directly, a complete rabbit feed production line is completed.
Rabbit Feed
Pellet Mill Case
RICHI rabbit feed pellet machine is very popular among rabbit farms and rabbit food processing factories. Up to now, more than 140 countries and regions around the world are using our machines.
Case Studies

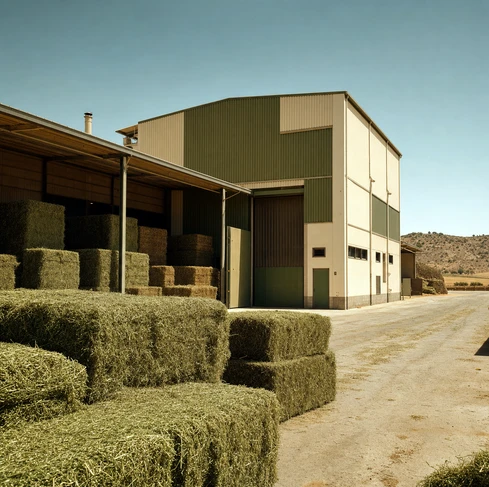

●Spain
10T/H Rabbit feed pellet processing factory
The customer is a local factory that specializes in rabbit feed. It wants to establish a stable rabbit food processing production line. The local raw materials are mainly alfalfa meal and corn and soybean meal. We recommended a ring-die pellet machine for him, paired with a double-layer modulator to better handle high-fiber raw materials.
- Model : SZLH420
- Capacity : 8-12T/H

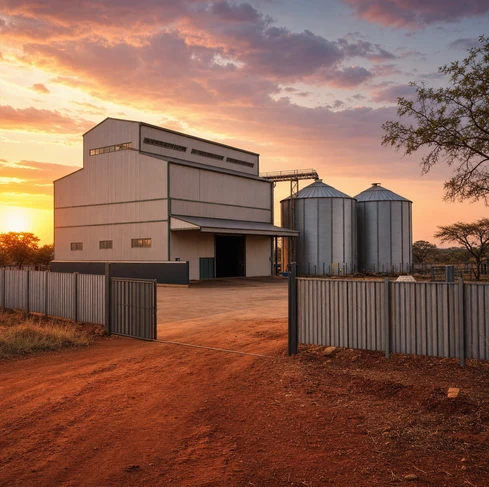

●Egypt
2T/H Rabbit feed pellet machine
The customer is a large-scale rabbit breeding farm and wants to purchase a machine to make its own feed. We recommended a small ring-die pellet machine to him, which is economical, practical and easy to operate. It also works well for crushing and modulating alfalfa and produce in recipes.
- Model : SZLH250
- Capacity : 1-2T/H

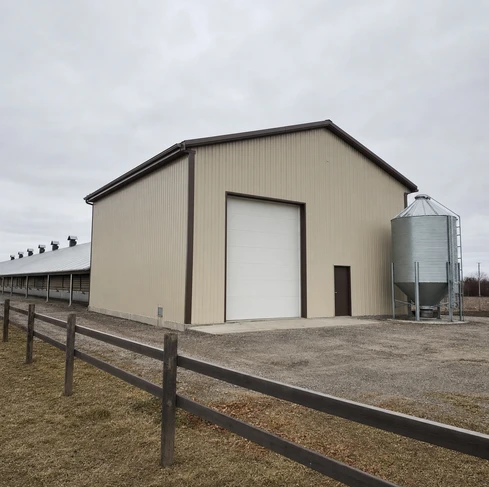

●Cuba
1.5-2T/H Rabbit feed pellet processing factory
The customer is a rabbit food processing factory that supplies the local market, but the original machine cannot handle high-fiber raw materials such as local moringa and sugar cane. We recommended a small ring-die pellet machine to him. The lengthened and thickened modulator quickly fully matured the raw materials.
- Model : SZLH250
- Capacity : 1-2T/H

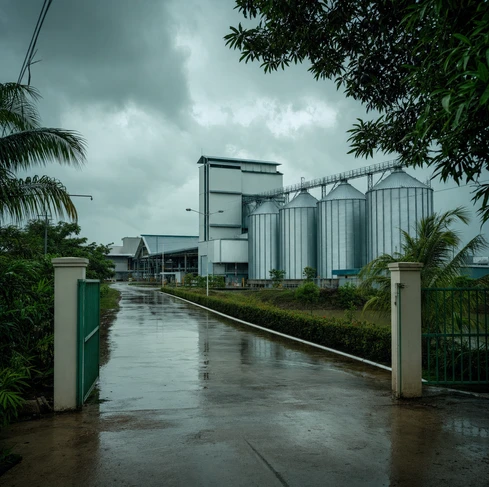

●Thailand
5T/H Rabbit feed pellet machine
The customer is a large local rabbit feed processing factory, and the raw materials are mainly corn and cassava. However, cassava fiber is relatively light, and the viscosity of starch is difficult to control. As soon as the original pellet machine encountered cassava, the powdering rate soared. The loss of raw materials is too serious. We replaced him with a ring-die pellet machine with forced feeding and a double-layer modulator.
- Model : SZLH350
- Capacity : 5-7T/H
Rabbit Feed Pellet Mill
Project System Process
How to choose a suitable rabbit feed pellet machine and how to lay out the production line? We have formed a complete and replicable project management process internally for these issues. From design to after-sales, we take care of everything. Just tell us your needs and leave the rest to us.
Customized Design
It’s not like I’m sending you a form and asking you to fill it out and then the picture will come out. We will first ask you what materials you plan to use, the approximate quantity, and the conditions of the factory. Then our professional R&D and design team will make a customized plan for you.
Own Production
Machine cutting, welding and assembly are all completed in our own factory. With European CE certification and Swiss SGS certification in hand, we ensure that every machine shipped from the factory meets international standards.
Deliver Carefully
Putting together the equipment on site is only the first step. We will bring the materials for systematic debugging and acceptance, and bring the customer team for hands-on operation training. Finally, until the customer is satisfied, they sign for acceptance.
Commitment to After-Sales Service
The entire machine is guaranteed for twelve months under normal use. If there is a problem with the machine, the after-sales staff can immediately provide solutions, and the overseas resident engineer team can rush to the scene within 48 hours.
About RICHI Machinery
Based in China and serving global markets, RICHI Machinery is a global manufacturer and engineering service provider specializing in pellet production equipment and complete processing systems. From feed, biomass, and organic fertilizer to cat litter and agricultural waste recycling, we help customers build efficient, reliable, and scalable production solutions tailored to their raw materials, capacity requirements, and market goals. With projects delivered across multiple industries and countries, our focus is always on practical performance, long-term operation, and customer success.
Advanced Engineering & Intelligent Manufacturing
Driven by technology and manufacturing expertise, RICHI integrates process engineering, equipment R&D, intelligent manufacturing, and project delivery into one complete service system. Our modern production facilities, precision machining capabilities, and experienced technical team allow us to provide customized equipment, complete plant design, automation integration, installation guidance, and ongoing technical support. From single machines to fully integrated production lines, we deliver solutions designed for stability, efficiency, and sustainable production growth.
Frequently Asked Questions
What is the production capacity range of your rabbit feed pellet mill? How to choose the model that suits me?
RICHI rabbit feed pellet machine mainly promotes the SZLH series, with a production capacity covering 1-40T/H. The specific model selection of the pellet machine depends on your raw materials, production capacity requirements, budget, etc. You can contact us and we have a professional consulting team to answer your questions.
How long can the machine be used? How often should the ring die and pressure roller be replaced?
As long as it is properly maintained, the machine can be used for more than ten years. The key components of the machine, the ring die and the pressure roller, will wear out quickly because they are in direct contact with the raw materials. The normal life span is 500-800 hours. They can be replaced when the time is up, and it will not affect the continued use of the machine.
My formula contains a relatively high proportion of alfalfa and straw (40%-50%). Can your machine press them into shape?
sure. Our pellet mills are heavy-duty ring-mold structures with multi-layer modulators, specifically designed for high-fiber materials.
Is the machine easy to operate? Is daily maintenance troublesome?
The operation is very simple. It can be started with one click and also supports intelligent adjustment of device parameters.
Routine maintenance is also quick. Turn the machine on and off every day to check the ring mold and pressure roller to see if there are any foreign objects left in the machine, as well as the safety switch and screws. This can be completed in less than 5 minutes.
Can I see with my own eyes how good the rabbit feed pellet machine is?
Can. We offer both physical factory tours and virtual tours. In addition, you can also tell us the raw material formula, and we can record a trial operation video for you so that you can see with your own eyes the quality of the feed produced by this machine. We also have many customer cases that we can share with you for your reference.
What after-sales services do you have?
We provide a one-year warranty that meets the standards of the machinery industry. As long as the problem is caused by non-human damage, we can repair it. We also have a lifetime maintenance service and only charge the cost of accessories.
At the same time, when a machine fails, we have online service personnel to provide you with solutions 24 hours a day, and a professional team of engineers can rush to you within 48 hours.
