Aquatic Feed Mill Project
Fish Feed Mill Cases
Floating and sinking feeds have different requirements for grinding fineness and extrusion parameters. So we provide customized designs based on each customer’s actual situation.
5T/H Sinking Fish Feed Mill in Russia
RICHI engineers discovered on site in Russia that pipes can freeze and crack after winter shutdowns. So we added insulation to key parts of the production line. We adjusted the compression ratio of the ring die pellet mill. So this ensures firm pellets that sink quickly and stay stable in water.
- Customer output : 5 t/h
- Raw materials : soybean meal, fish meal, premix
2T/H Tilapia Floating Feed Mill in Indonesia
Local tilapia farming has high output. So we used a twin-screw extruder and optimized the parameters. Thus this makes the pellets float stably for over 24 hours.
- Customer output : 2 t/h
- Raw materials : corn, soybean meal, fish meal
1.5T/H Catfish Sinking Feed Mill in Nigeria
Local fish meal supply is unstable. So we customized an alternative protein formula for the customer. We adjusted the pelleting parameters using local ingredients like cottonseed meal and peanut meal. Therefore this effectively reduced production cost.
- Customer output : 1.5 t/h
- Raw materials : cottonseed meal, peanut meal, corn, vitamin premix
8T/H Mixed Fish Feed Mill in Vietnam
The customer farms both seabass (floating) and carp (sinking). We therefore used the control system to adjust extrusion parameters flexibly. Thus this enables quick switching between floating and sinking feed production.
- Customer output : 8 t/h
- Raw materials : imported fish meal, soybean meal, wheat, bran
3 t/h Floating Fish Feed Extrusion Line in Bangladesh
We delivered a twin-screw extrusion line equipped with a precision coating system. The finished feed achieves a floating rate of over 98%, significantly reducing local farmers’ dependence on imported feed.
- Customer output : 3t/h
- Raw materials : Fish meal, soybean meal, wheat flour, rice bran
5 t/h Salmon Feed Production Line in Chile
The fully automated production line optimizes the extrusion and coating processes for high-fat formulas. The equipment has been running stably under wet operating conditions for three production seasons.
- Customer output : 5t/h
- Raw materials : Fish meal, fish oil, soybean meal, wheat gluten meal
Shrimp and Crab Feed Mill Cases
Shrimp and crab feed pellets are fine and require high water stability. So the production line demands higher process standards. Every RICHI machine goes through performance testing before leaving the factory. So this ensures they can handle the challenging demands of shrimp and crab feed production.
India · 3T/H Shrimp Feed Mill
The local rainy season is hot and humid. So we strengthened the drying capacity of the production line. We also added a moisture-proof packaging system.
- Customer output : 3 t/h
- Raw materials : fish meal, shrimp shell meal, soybean meal, flour

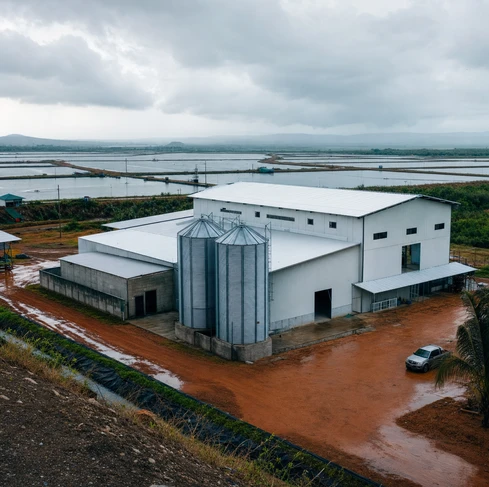

Ecuador · 4T/H White Shrimp Feed Mill
We used a low-expansion sinking mode with post-spraying oil coating technology. In fact, the pellets achieve over 4 hours of water stability in tests.
- Customer output : 4t/h
- Raw materials : fish meal, squid viscera powder, soybean meal, premix

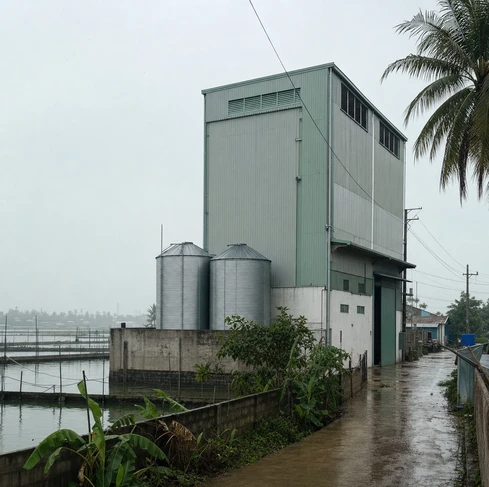

Vietnam · 2T/H Mixed Crab and Shrimp Feed Mill
We use a twin-shaft mixer and a micro-liquid addition system. Also, these ensure precise and uniform mixing according to the formula. Combined with ultrafine grinding and extrusion pelleting, one production line can produce both shrimp and crab feed.
- Customer output : 2 t/h
- Raw materials : fish meal, peanut meal, shrimp head powder, binder
Australia · 1.5T/H Crayfish Feed Mill
RICHI configured a ring die pellet mill for the customer. It produces 1.5mm sinking pellets. Then this ensures high water stability and palatability.
- Customer output : 1.5 t/h
- Raw materials : fishes meal, blood meal, soybean meal, wheat middlings

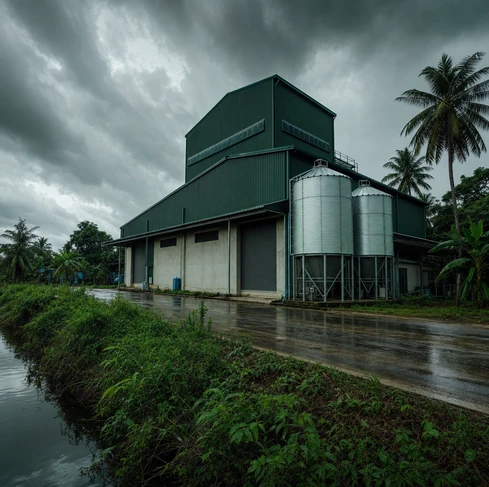

Thailand · 2 t/h Shrimp Feed Pellet Production Line
We designed a compact shrimp feed pellet line that adapts to the existing warehouse space. It switches production between floating and sinking modes to meet the needs of all growth stages from larvae to adult shrimp.
- Customer output : 2t/h
- Raw materials : Fish meal, soy protein concentrate, corn gluten meal, premix
Madagascar · 1-1.4 t/h Shrimp Feed Pellet Production Line
We introduced an SZLH350 shrimp feed pellet mill, achieving for the first time standardized production of 2-3 mm sinking pellets. The pellets maintain their shape in water for over 2 hours.
- Customer output : 1-1.4t/h
- Raw materials : Shrimp meal, soybean meal, cassava flour, rice bran, fish oil, premix
Pet Feed Mill Cases
Pet food focuses on appearance, color, and nutrition. We use stainless steel for core equipment. So this makes cleaning easy and prevents cross-contamination.
Netherlands · 3T/H Ornamental Fish Feed Mill
To meet the high buoyancy and color enhancement needs of tropical fish feed, we used a twin-screw extruder with natural color enhancers. Moreover, the pellets float for over 24 hours without breaking apart.
- Customer output : 3 t/h
- Raw materials : fish meal, astaxanthin, flour, spirulina
USA · 5T/H Dog and Cat Food Line
We equipped it with special-shaped dies and a vacuum coating system. Then this allows even oil penetration. Moreover, the full 304 stainless steel body design fully meets pet food hygiene and safety standards.
- Customer output : 5 t/h
- Raw materials : chicken meal, corn, wheat, animal fat

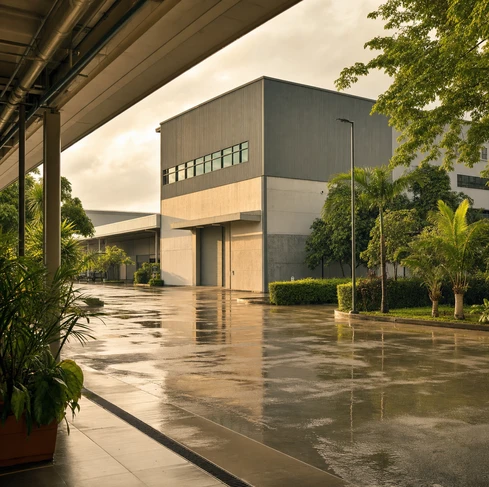

Thailand · 2T/H Hamster and Rabbit Feed Mill
Small pet feed pellets are small and have medium hardness. So we adjusted the die diameter and compression ratio for the customer.
- Customer output : 2 t/h
- Raw materials : alfalfa meal, soybean meal, corn, molasses

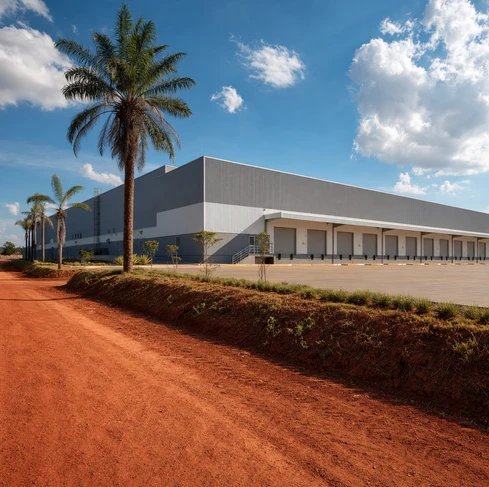

Brazil · 4T/H Dog Food Line
The customer’s main raw material is corn. So we optimized the conditioning parameters to increase starch gelatinization. Thus this makes the pellets crispy and palatable.
- Customer output : 4 t/h
- Raw materials : corn, chicken by-products, soybean meal, premix
Ireland · 2-2.5 t/h Cat and Dog Pet Food Extrusion Line
The customer used an existing 6,000 m² factory building to bring in a complete set of extrusion equipment. The line produces 10,000 tons of cat food and 10,000 tons of dog food annually. The highly automated operation requires only 44 people to manage three-shift production.
- Customer output : 2-2.5t/h
- Raw materials : Corn, chicken meal, beef bone meal, soybean meal, chicken fat

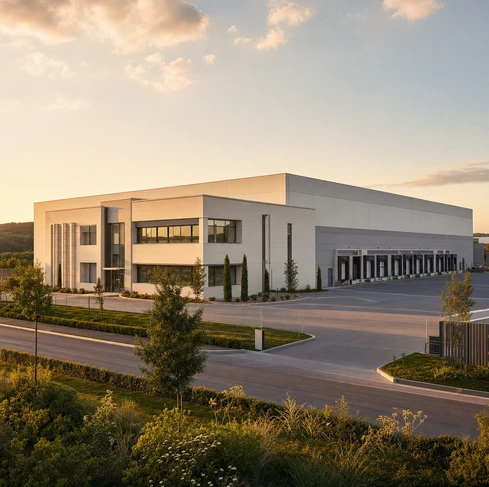

France · 8 t/h High-end Pet Food Production Line
The French pet staple food market demands extremely high standards of ingredient transparency and localization. We delivered an 8-ton production line to the Brittany region. The low-temperature extrusion process protects protein quality, and two-stage drying enhances palatability.
- Customer output : 8t/h
- Raw materials : Local duck meat, rabbit meat, heritage grains
Multi-Function Feed Production Line
It supports switching between more than two types of animal feed. The control system and modular design allow mixing multiple aquatic feeds, or mixing aquatic with livestock and poultry feeds.
Turkey · 6T/H Fish + Shrimp + Pet Mixed Line
The customer’s farm needs multiple feed types. We used variable frequency drive and quick die change design. Also, the control system stores process parameters for one-touch recall.
- Customer output : 6 t/h
- Raw materials : switch by product (fish meal, soybean meal, meat and bone meal, etc.

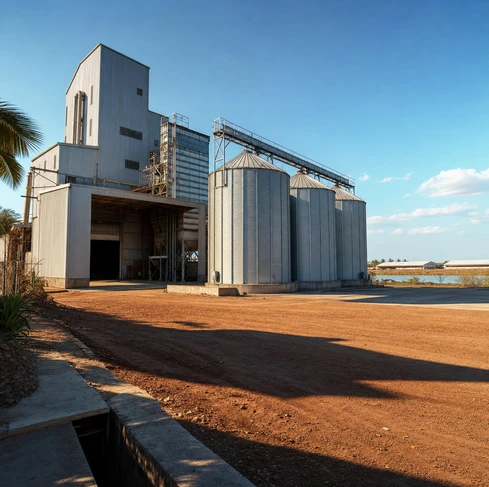

Mexico · 5T/H Shrimp + Tilapia + Chicken Feed Line
Local farming focuses equally on aquaculture and poultry. So we equipped it with a twin-shaft mixer and an ultrafine grinder. Then these support secondary grinding for shrimp feed. Moreover, the pellet mill has two sets of ring dies for quick changeover between products.
- Customer output : 5t/h
- Raw materials : fish meal, corn, soybean meal, premix

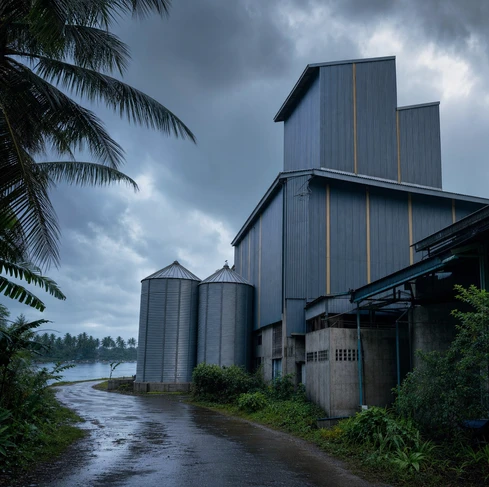

Philippines · 3T/H Floating Fish and Shrimp Mixed Line
Small and medium farmers have limited budgets. So we used a modular design approach. First, the initial setup includes a floating fish feed module. Also, it has reserved connections for shrimp feed. In the future, customers can add an ultrafine grinder and a vacuum coating system for upgrades..
- Customer output : 3 t/h
- Raw materials : fish meal, rice bran, soybean meal, bran

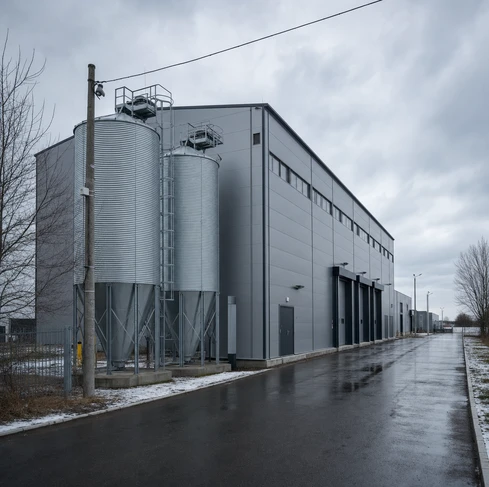

Poland · 4T/H Sinking Fish and Pet Mixed Line
We helped the customer expand into pet food based on their existing fish feed line. Then we added special-shaped dies and a coating system. Then they share the batching and mixing section. Thus this saves investment and maximizes use of existing plant space.
- Customer output : 4 t/h
- Raw materials : fish meal, meat meal, corn, premix
Bhutan · 0.8-1 t/h Aquatic Pet Feed and 3-4 t/h Livestock Feed Combined Production Line
We introduced a multifunctional line that combines twin-screw extrusion and ring die pelletizing, enabling simultaneous production of fish and shrimp feed, cat and dog food, and livestock feed, flexibly replacing imports.
- Customer output : 0.8-1t/h (aquatic and pet) + 3-4 t/h (livestock)
- Raw materials : Corn, wheat bran, fish meal, soybean meal, mustard cake, insect protein
Iran · 1.5-2 t/h Fish and Shrimp Feed Production Line
The customer required the line to be built inside a narrow plant measuring 66 m × 13 m. RICHI adapted the space with a modular twin-screw extrusion system, allowing flexible switching between floating fish feed and sinking shrimp feed, and reserved a pet food production interface to leave ample room for business expansion.
- Customer output : 1.5-2t/h
- Raw materials : Fish meal, starch, soybean meal, corn, rapeseed meal, wheat bran
About RICHI Machinery
Based in China and serving global markets, RICHI Machinery is a global manufacturer and engineering service provider specializing in pellet production equipment and complete processing systems. From feed, biomass, and organic fertilizer to cat litter and agricultural waste recycling, we help customers build efficient, reliable, and scalable production solutions tailored to their raw materials, capacity requirements, and market goals. With projects delivered across multiple industries and countries, our focus is always on practical performance, long-term operation, and customer success.
Advanced Engineering & Intelligent Manufacturing
Driven by technology and manufacturing expertise, RICHI integrates process engineering, equipment R&D, intelligent manufacturing, and project delivery into one complete service system. Our modern production facilities, precision machining capabilities, and experienced technical team allow us to provide customized equipment, complete plant design, automation integration, installation guidance, and ongoing technical support. From single machines to fully integrated production lines, we deliver solutions designed for stability, efficiency, and sustainable production growth.
Frequently Asked Questions
Building an aquafeed mill involves raw materials, equipment, process, and budget. Here are the questions customers ask most often.
I have fish meal, soybean meal, corn, and some local oilseed meals. Can I use all of them?
Yes, you can. Generally, aquafeed production lines are highly tolerant of raw materials. As long as grinding fineness and freshness meet standards, they work. However, oilseed meals have higher fiber content. Just adjust the formula ratios appropriately.
Can I produce both floating and sinking feeds with the same equipment?
Yes. So by adjusting extrusion parameters (pressure, temperature, moisture, etc.), one line can quickly switch between floating and sinking feeds.
Why is ultrafine grinding necessary for shrimp feed?
Shrimp have short digestive tracts. If particles are not fine enough, absorption is poor. Thus ultrafine grinding to 80-100 mesh or higher improves feed utilization. It also increases pellet water stability.
What level of automation can the production line achieve?
It depends on your budget. For instance, a basic line can achieve automatic control of batching, mixing, pelleting, and packaging. In contrast, the high-end line includes a control system. Then the whole line needs only 4-6 operators.
I have limited plant space. Can the equipment layout be compact?
Yes. Actually, RICHI has cases with limited plant space. For example, we use modular design, vertical layout, and shared bins to save space. Send us your plant dimensions. We will provide drawings.
What if equipment breaks down? How does your after-sales service work?
The whole machine has a one-year warranty. Also, we keep overseas parts warehouses. Common parts ship quickly. Then our engineers can provide remote video guidance. If that can’t solve the issue, we go to the site.
