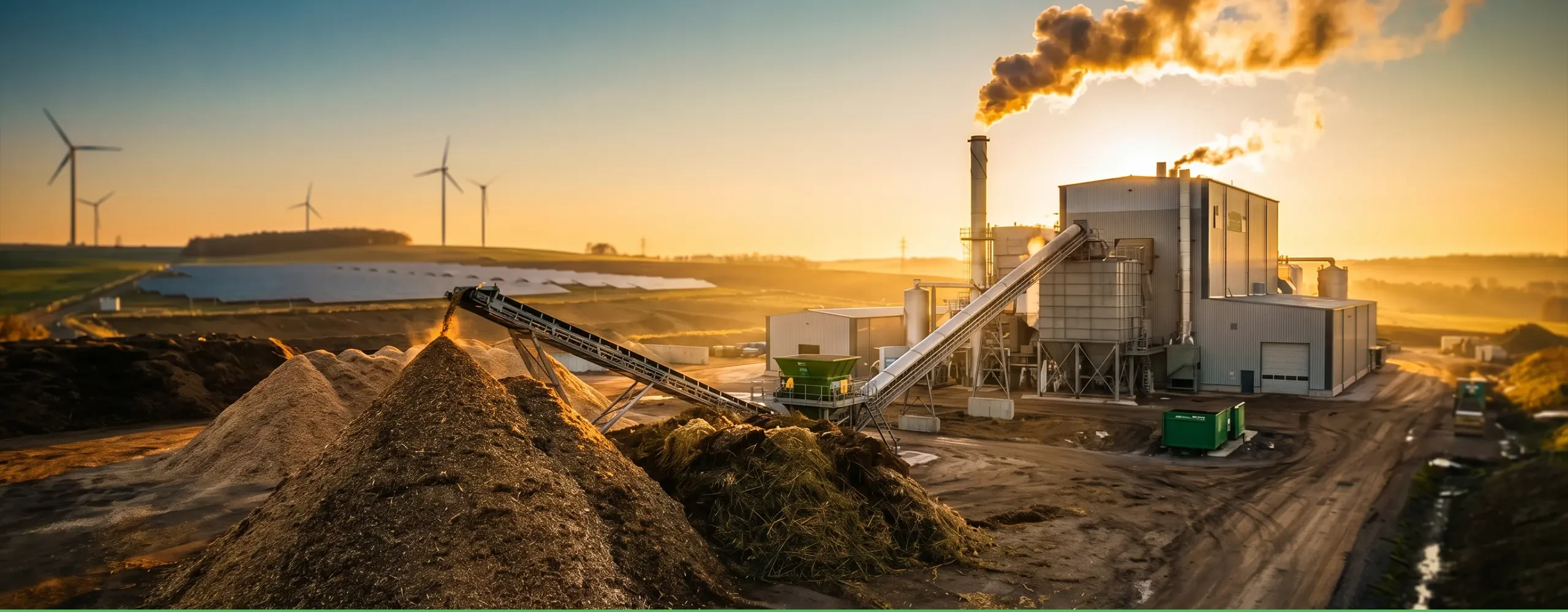

Biomass Pellet Plant Project
wood based Biomass pellet plant cases
Wood waste comes in large volumes and varies in hardness. The main challenges are grinding and die life. For different projects, we adjust chipping, grinding, and ring die solutions based on hard wood, soft wood, wet wood, and dry wood.

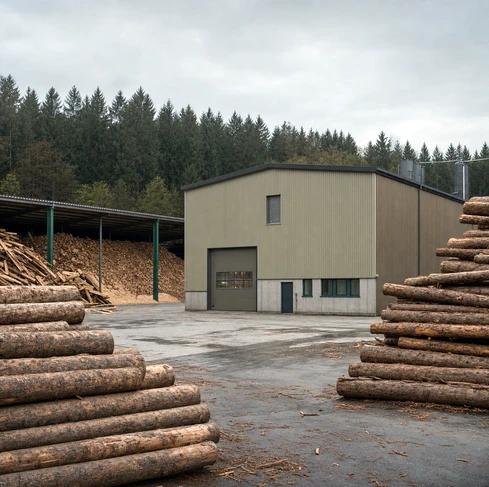

Wood waste pellet plant in Germany
The client’s main raw materials are beech and oak offcuts. These are hard and have long fibers. That’s why we used a heavy-duty chipper and adjusted the ring die compression ratio accordingly.
- Customer output : 2 t/h
- Raw materials : Wood waste, branches, sawdust

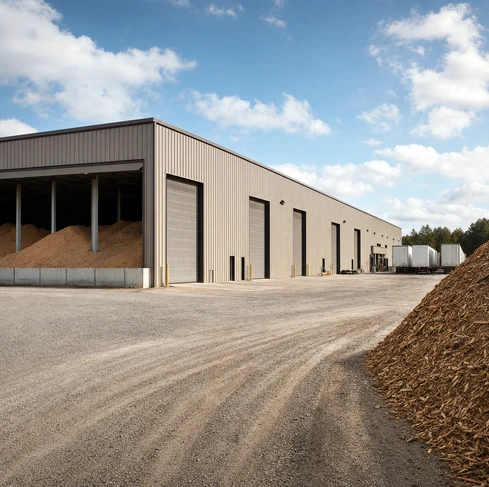

Sawdust pellet production line in USA
Fine materials like sawdust and bark tend to create too much dust in the cooling section. Therefore, we designed a multi-pass dryer and an automatic packing line for this client.
- Customer output : 5-6 t/h
- Raw materials : Sawdust, bark, forestry waste

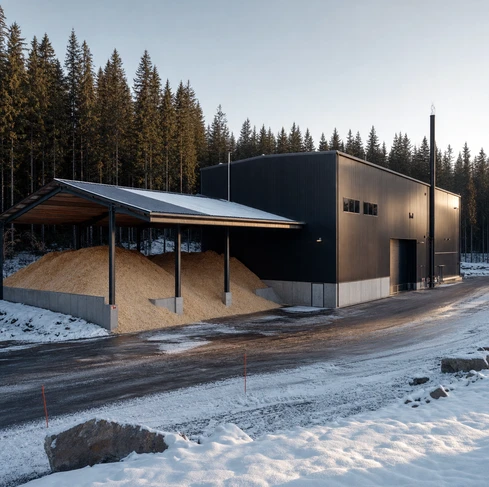

Spruce shavings pellet plant in Finland
We added air separation for dust removal in the grinding section. Then we used a low-compression ring die. As a result, the pellets had a smooth surface and met the local power plant’s requirements for low dust content.
- Customer output : 2.5-4 t/h
- Raw materials : Spruce shavings, sawdust
Mixed softwood waste pellet plant in Canada
The raw materials come from sawmills and panel board plants, with a small amount of adhesive. To avoid hard impurities damaging the grinder, we installed a permanent magnet drum and a drum screen at the front of the line. We also adjusted the ring die compression ratio to prevent sticking.
- Customer output : 3-5 t/h
- Raw materials : Pine, fir sawdust and offcuts

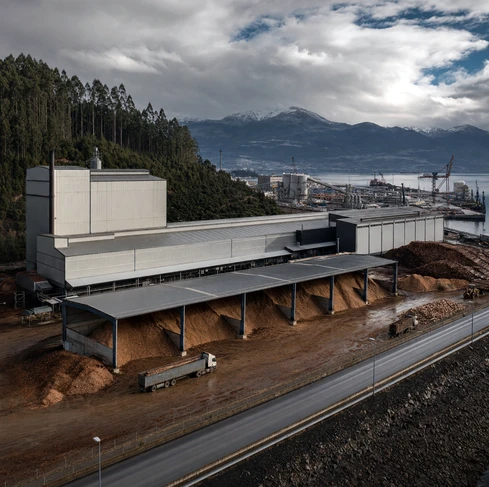

Biomass Wood Pellet Production Line in Chile
We delivered a fully automatic pellet line with an annual output of 20,000 tons, ending the history of paid removal and burning.
- Customer output : 7-8t/h
- Raw materials : Radiata pine sawdust, wood chips, shavings
Wood Pellet Production Line in Austria
The customer required a heating pellet line that complies with EU CE certification. RICHI undertook a full turnkey project from design to civil works. The finished 4 mm pellets supply residential and industrial boiler heating.
- Customer output : 5t/h
- Raw materials : Sawdust
grass based Biomass pellet plant cases
Grass materials are fluffy and have long fibers. They tend to tangle or block the feed inlet. The key equipment are the rubbing machine and forced feeding system. The compression ratio is usually higher than for wood materials.

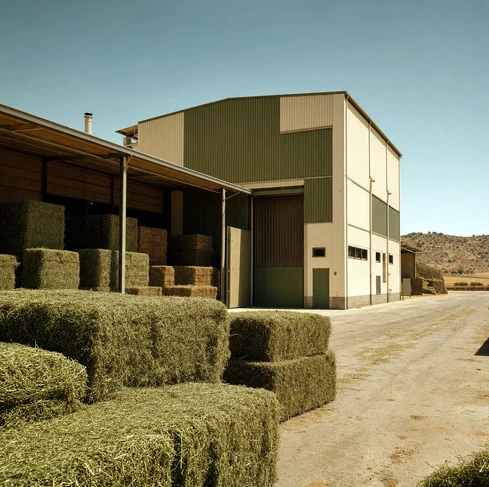

Alfalfa pellet plant in Spain
Dried alfalfa is light, so a normal feed hopper does not work well. We added a horizontal forced feeder with a Siemens VFD motor. As a result, the current fluctuation during pelletizing was significantly reduced.
- Customer output : 3-4 t/h
- Raw materials : Alfalfa
Hybrid Pennisetum pellet plant in South Africa
We installed a two-stage rubbing machine. The material is first cut short and then rubbed into fibers. After that, it goes to pelletizing. The pellet forming rate remained stable at a high level.
- Customer output : 4-5t/h
- Raw materials : Pennisetum, elephant grass
Timothy grass pellet plant in USA
Timothy grass has a smooth surface. Pellets made from it tend to crack easily. To solve this, our engineers adjusted the pelletizing temperature and extended the cooling time, and this fixed the cracking issue.
- Customer output : 1.5-2 t/h
- Raw materials : Timothy grass

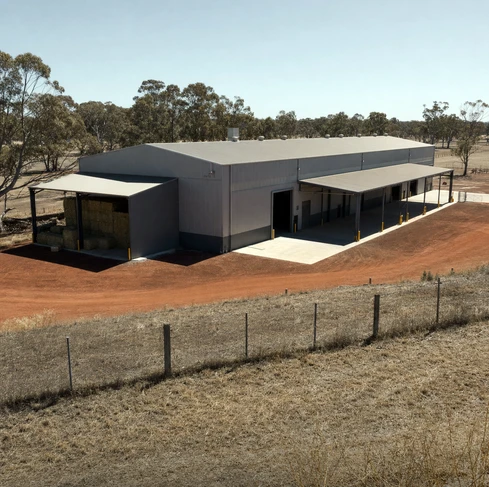

Oat hay pellet plant in Australia
We suggested that the client mix a small amount of limestone powder (locally available) into the material. This effectively reduced how often oat hay stuck and coked on the inner wall of the ring die.
- Customer output : 3-5 t/h
- Raw materials : Oat hay straw
Cattle Sheep Forage Pellet Production Line in Saudi Arabia
RICHI customized a specialized grass pellet line equipped with a forced feeding device. The finished 1-2 mm pellets reduce storage volume by three quarters.
- Customer output : 5-6 t/h
- Raw materials : Alfalfa, forage grass, barley straw, corn
Forage Pellet Feed Production Line in France
Southern France has abundant forage resources but suffers from low utilization. RICHI introduced a pellet line specifically designed for high-fiber forage, equipped with a large-chamber grinder and a forced feeding pellet mill.
- Customer output : 5t/h
- Raw materials : Ryegrass, alfalfa, legume forage
straw based Biomass pellet plant cases
Corn, wheat, and rice straw are tough. They need cutting before grinding. Another pain point is that stones and wires often mix in during field harvest. So good impurity removal is necessary.
Rice husk and straw pellet plant in Vietnam
Rice husk is fluffy and has a waxy layer on the surface, which causes clogging easily. We installed a forced feeding system and a cyclone dust collector for the client. This greatly improved production efficiency.
- Customer output : 1.5-2 t/h
- Raw materials : Rice husk, rice straw, chaff
Wheat straw pellet plant in Poland
The client had damaged a ring die before because wires got into the pelletizer. Therefore, we added multiple magnetic separators at the front and replaced the ring die with a thicker one. After that, no such failure happened again.
- Customer output : 3-4 t/h
- Raw materials : Wheat straw

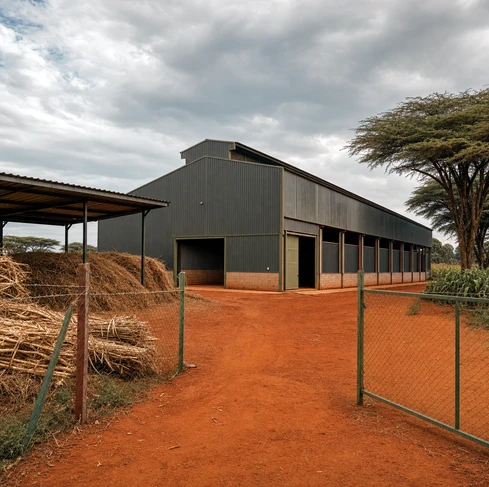

Corn straw pellet plant in Kenya
Local corn straw has high moisture content. It is even harder to dry during the rainy season. We configured a drum dryer, using part of the straw as fuel to generate heat. This reduced the moisture to a suitable level for pelletizing.
- Customer output : 2-2.5 t/h
- Raw materials : Corn straw

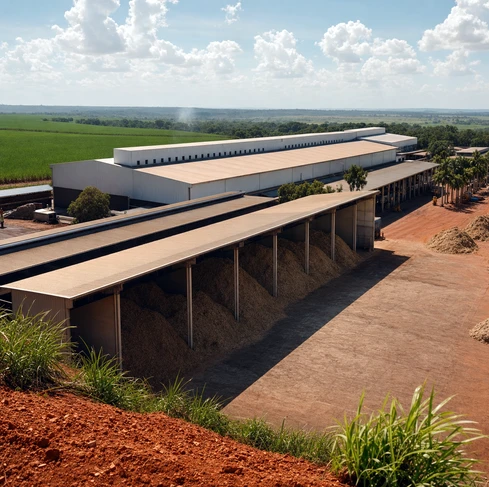

Sugarcane bagasse corn straw mixed pellet plant in Brazil
The client’s main raw material, pure sugarcane bagasse, gives low calorific value. So we suggested adding a certain proportion of corn straw to increase the calorific value. We also adjusted the grinder screen to make the mixture more uniform.
- Customer output : 6-8 t/h
- Raw materials : Sugarcane bagasse, corn straw

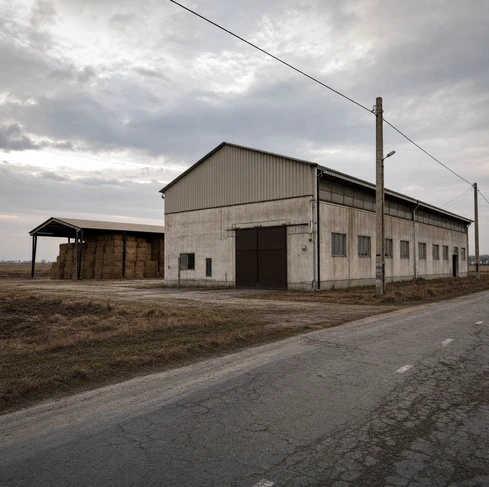

Straw Biomass Pellet Production Line in Romania
We delivered a biomass pellet line with an annual output of 20,000 tons. The finished 8-10 mm pellets directly supply township heating and industrial boilers.
- Customer output : 2.5-3t/h
- Raw materials : Wheat straw, corn stalks, sawdust

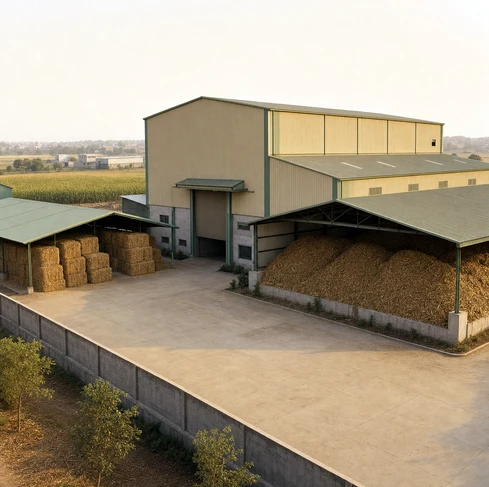

Corn Stover Bio-pellet Feed Production Line in India
The local area has abundant corn stover resources but lacks processing capacity. We set up a complete straw bio-pellet feed line, converting corn stover into complete commercial feed specifically for cattle and sheep farming.
- Customer output : 15t/h
- Raw materials : Corn stover, wheat straw
husk based Biomass pellet plant project
Raw materials like rice husk, peanut shell, and palm kernel shell are hard and abrasive. This challenges ring die and roller life. Our solutions focus on wear-resistant materials and proper process parameters.
Peanut shell and corn cob pellet plant in South Africa
Peanut shells and corn cobs can reach 12%-15% moisture after natural drying. This falls within the ideal moisture range for pelletizing (recommended 13%-17%). So no dryer is needed. They can go directly to pelletizing, which greatly reduces investment and operating costs.
- Customer output : 10-12 t/h
- Raw materials : Peanut shells, corn cobs, agricultural waste.

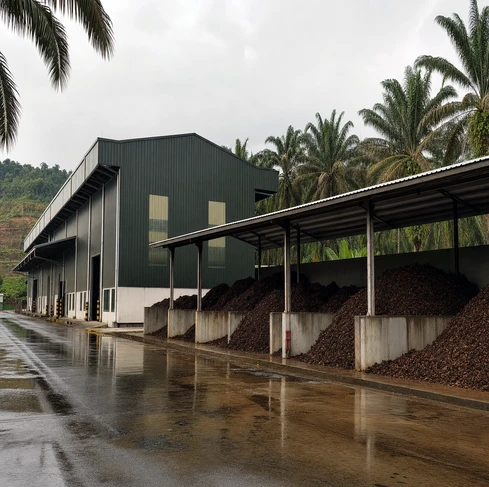

Palm kernel shell pellet plant in Malaysia
Palm kernel shells are very hard and abrasive. Normal ring dies wear out quickly. We delivered alloy steel ring dies with deep case carburization and quenching. Together with heavy-duty SKF bearings and thickened roller shells, the client reported a significantly longer service life.
- Customer output : 4-6t/h
- Raw materials : Palm kernel shell
Rice husk pellet plant in Italy
The production line we designed uses an air-flow dryer. It burns part of the rice husk to provide hot air. As a result, the drying cost per ton is lower than conventional methods.
- Customer output : 1.5-2 t/h
- Raw materials : Rice husk

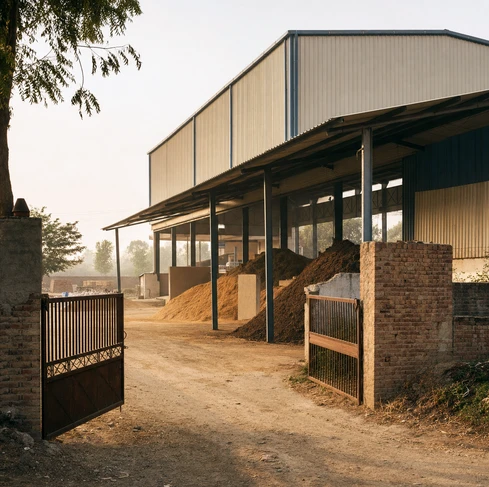

Cottonseed hull and rice husk mixed pellet plant in India
We helped the client adjust the recipe. We also adjusted the ring die compression ratio and main shaft speed. The final pellets had uniform density.
- Customer output : 3-5 t/h
- Raw materials : Cottonseed hull, rice husk
Peanut Shell Biomass Pellet Production Line in Nigeria
The customer has long been engaged in agricultural product processing. Large quantities of peanut shells and sawdust were piled up and burned, causing both waste and pollution. We designed a ring die pellet production line for him, producing 30×50 mm high-density fuel to replace diesel and coal.
- Customer output : 4t/h
- Raw materials : Peanut shells, sawdust

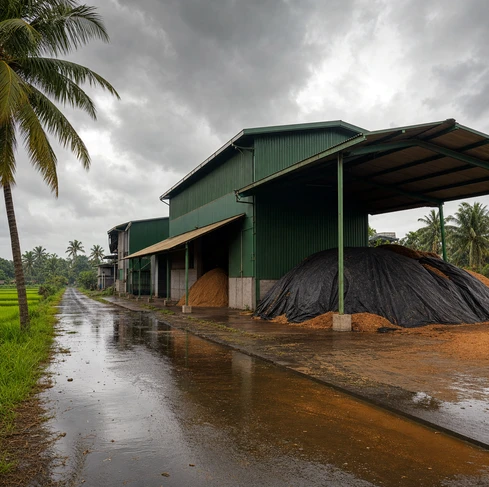

Rice Husk Pellet Production Line in Sri Lanka
Sri Lanka’s rice milling industry generates massive amounts of rice husk every year. We designed a 2-3 ton pellet production line for a customer, converting waste rice husk into high-energy fuel pellets.
- Customer output : 2-3t/h
- Raw materials : Rice husk
About RICHI Machinery
Based in China and serving global markets, RICHI Machinery is a global manufacturer and engineering service provider specializing in pellet production equipment and complete processing systems. From feed, biomass, and organic fertilizer to cat litter and agricultural waste recycling, we help customers build efficient, reliable, and scalable production solutions tailored to their raw materials, capacity requirements, and market goals. With projects delivered across multiple industries and countries, our focus is always on practical performance, long-term operation, and customer success.
Advanced Engineering & Intelligent Manufacturing
Driven by technology and manufacturing expertise, RICHI integrates process engineering, equipment R&D, intelligent manufacturing, and project delivery into one complete service system. Our modern production facilities, precision machining capabilities, and experienced technical team allow us to provide customized equipment, complete plant design, automation integration, installation guidance, and ongoing technical support. From single machines to fully integrated production lines, we deliver solutions designed for stability, efficiency, and sustainable production growth.
Frequently Asked Questions
Thinking of building a pellet plant but unsure about technical details? Below are questions clients ask most often.
My raw material has very high moisture, for example fresh wood. Do I have to buy a dryer?
Not necessarily. If the raw material moisture exceeds 20%, it is indeed hard to form pellets without drying. But there are two alternatives. First, mix in dry material to bring the blended moisture below 18%. Second, use waste heat from a hot air stove to pre-heat. Only if you cannot reduce the moisture by these methods, then you need a dryer.
How much area does a production line need?
It depends on capacity. A small line (1-2 t/h) needs about 150-200 square meters for the main equipment plus hopper, cooler, screener, and packing (excluding raw material storage). For larger capacity lines, we recommend reserving more space. If your workshop has many columns or other limits, we can do a 3D layout optimization.
Palm kernel shell – does it wear out ring dies quickly? How long do your ring dies last?
Yes, palm kernel shell wears ring dies much faster than ordinary raw materials. For palm kernel shell, we provide ultra wear-resistant alloy ring dies (deep case carburized and quenched) and SKF bearings. The actual service life depends on the sand content in the raw material and operation maintenance. Please contact us directly for detailed data.
I only have a budget for a small line. Can I expand later?
Yes. Our modular design allows adding a grinder or pelletizer to the existing setup. One client started with one small line. Two years later, he added another pelletizer of the same size, sharing the drying and cooling system. This doubled the capacity. During the initial planning, we will reserve space and interfaces for you.
If equipment breaks down, how do you provide after-sales service?
Remote diagnosis is the first response. Our engineers look at the fault via video and guide you on how to repair or replace. Most electrical, bearing, and die problems can be diagnosed within a few hours. If necessary, we will send an engineer to your site within 48 hours.
Can you help us with raw material testing and a feasibility report?
Yes. Send 2-3 kg of representative raw material to our factory. We will test the forming effect on our lab pelletizer. We will then provide a report with data on moisture, pellet density, calorific value, and more. This report helps you determine whether your raw material is suitable for pelletizing and which compression ratio to choose.
